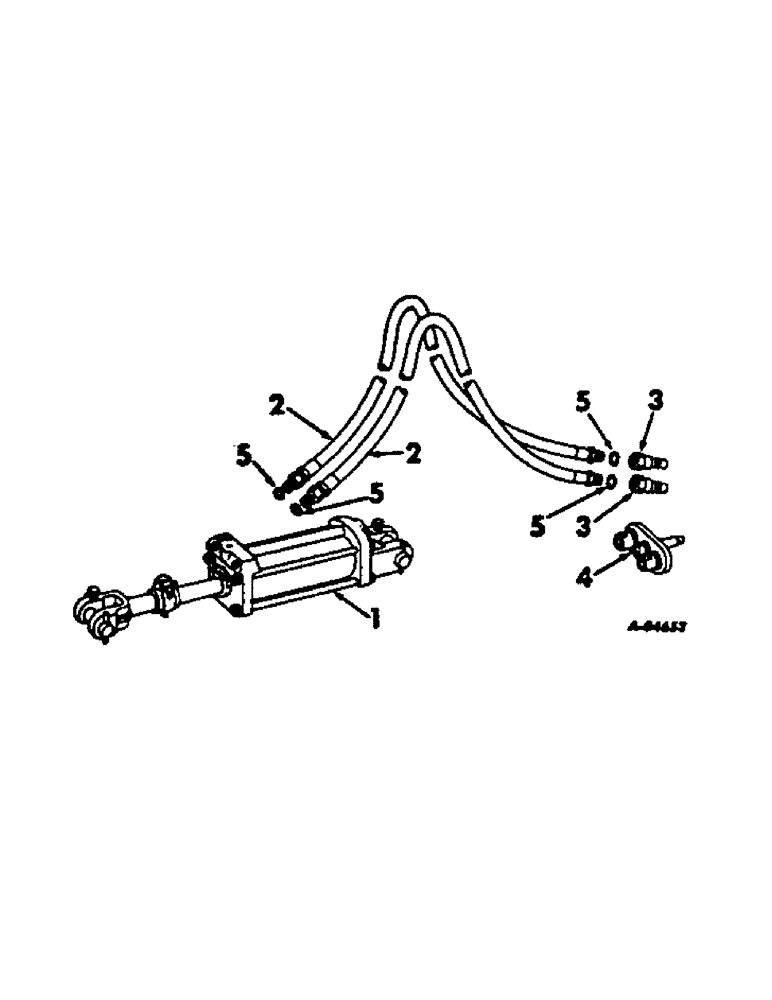

Запчасти Case IH 340 (X-09[B]) - HYDRAULIC CYLINDER AND CONNECTIONS

1

371292R95

CYLINDER

hydraulic 3-1/2 x 8 in., refer to cyl, 1 for components, order cylinder 403842R92

1шт.

1

403842R94

CYLINDER

hyd 3-1/2 x 8 in., refer to cyl, 1 for components

1шт.

2

372437R91

HOSE

ASSY, hyd, 112 in.

2шт.

3

395149R1

QUICK MALE COUPLING

COUPLING ASSY, self-sealing male

2шт.

4

(Not used in this application)

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

6шт.

1001029R3

DECAL

PRODUCT GRAPHIC, IH

1шт.

2751265R1

DECAL

PRODUCT GRAPHIC, International

1шт.

2754030R1

PRODUCT GRAPHIC

model designation

1шт.
