(AH-6[A]) - HYDRAULIC CYLINDER AND CONNECTIONS

Запчасти Case IH 345 (AH-6[A]) - HYDRAULIC CYLINDER AND CONNECTIONS

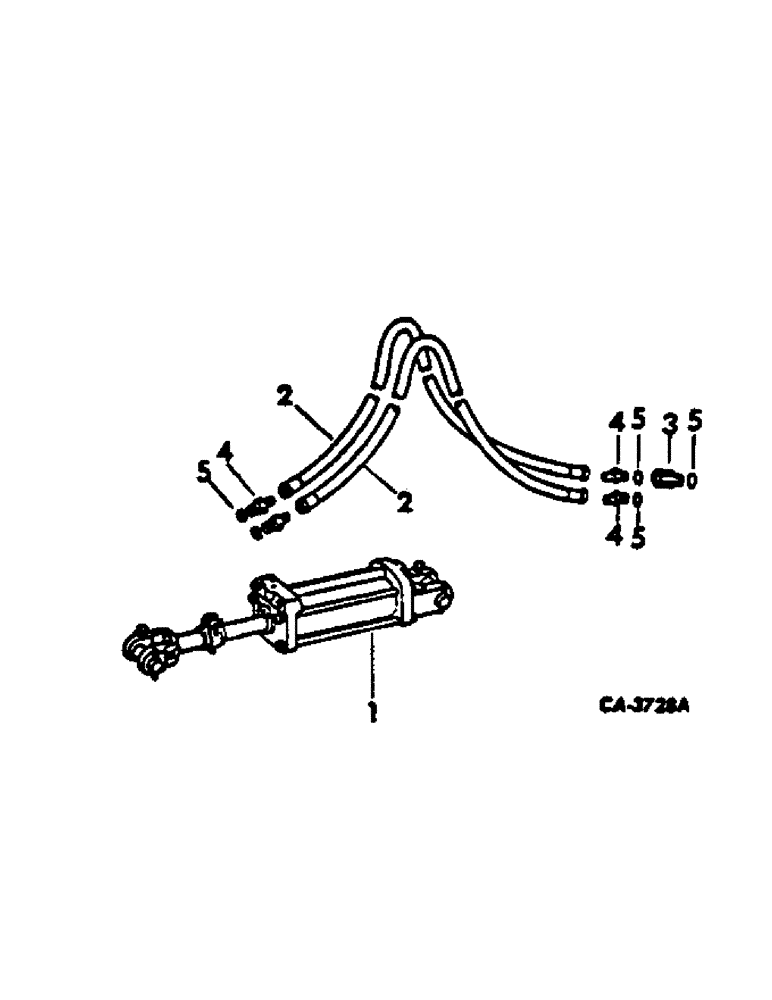

Схема запчастей Case IH 345 - (AH-6[A]) - HYDRAULIC CYLINDER AND CONNECTIONS
5
2
5
2
1
4
5
4
5
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

371292R95

CYLINDER

ASSY, 3-1/2 x 8 double acting, refer to cyl, 1 for components

1шт.

2

59254C1

HOSE ASSY, 1/4 x 76 in. hydraulic

2шт.

3

493960R91

VALVE

ASSY, drop retard

1шт.

4

391797R1

HYD CONNECTOR,7/16"-20, 37 Degree x 7/8"-14, O-Ring

UNION, 7/16-20 37 deg hyd. flared tube short swivel reducer

4шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

5шт.
