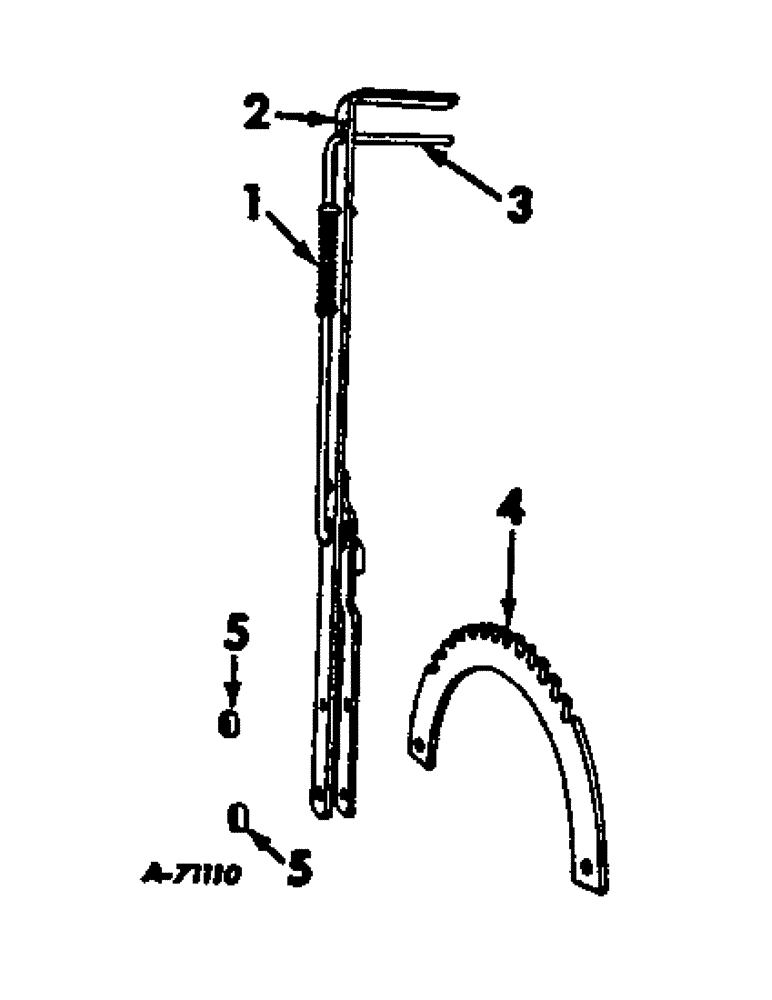

Запчасти Case IH 401 (M-05) - MANUAL TOOTH CONTROL LEVER

1

M92

SPRING

set lever detent

1шт.

2

467085R91

LEVER

ASSY, set

1шт.

PIN, 3/8 x 7/8 cotter

1шт.

22156R1

RIVET, 1/4 x 3/4 f-hd

1шт.

3

467089R1

DETENT, set lever

1шт.

469688

WASHER, 13/32 x 3/4 x 16 ga C-Z

2шт.

4

467087R1

QUADRANT, set lever

1шт.

BOLT W/NUT, 7/16 x 1-1/4 mach

2шт.

WASHER, 7/16 lock

2шт.

5

49335K

SPACER,1/2" X-Strng Pipe x .406"

set lever upper

2шт.

BOLT W/NUT, 1/2 x 2 mach

2шт.

WASHER, 1/2 lock

2шт.
