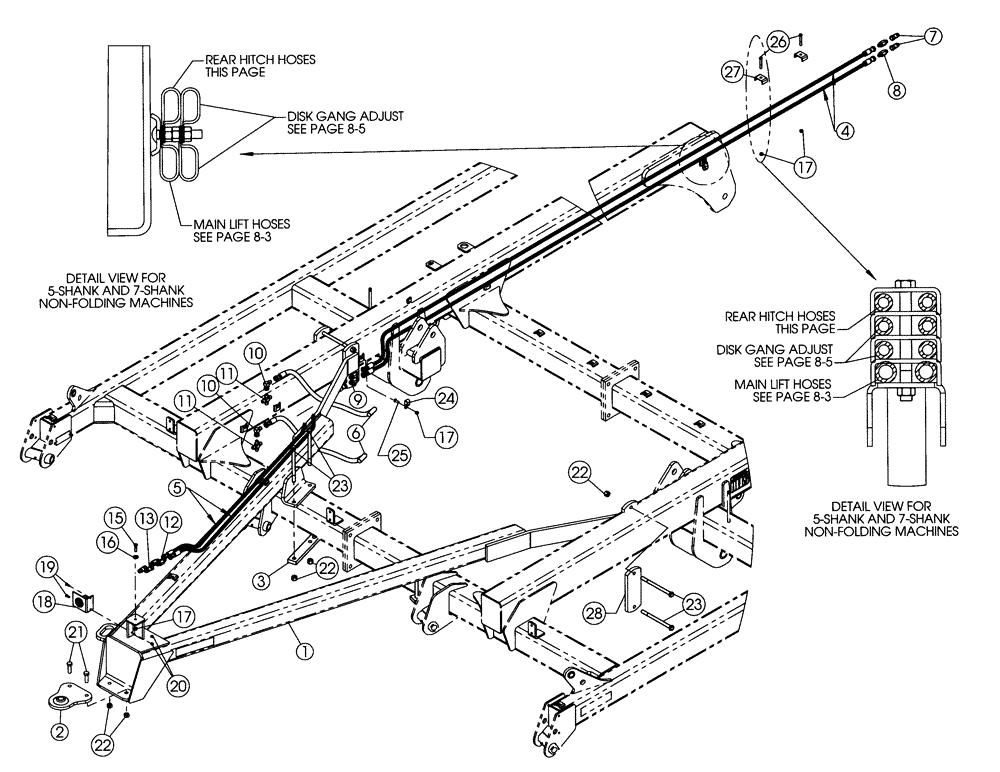

Запчасти Case IH 690 (39.110.01) - REAR HITCH ASSEMBLY

1

402444A1

HITCH ASSY

Rear, Weldment

1шт.

2

443543A1

PLATE ASSY.

Ball Joint

1шт.

3

402442A1

STRAP

Bar

2шт.

4

435667A1

HOSE ASSY.

1/4 x 370 (5-Shank & 7-Shank Non-Folding)

2шт.

5

1277718C1

HYDRAULIC HOSE,6.35 mm ID x 3050.00 mm

(5-Shank & 7-Shank Non-Folding)

2шт.

6

1277718C1

HYDRAULIC HOSE,6.35 mm ID x 3050.00 mm

(7-Shank Folding)

2шт.

7

25705041

COUPLING

3/4 SAEF (5-Shank & 7-Shank Non-Folding)

2шт.

8

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

(5-Shank & 7-Shank Non-Folding)

2шт.

9

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

(5-Shank & 7-Shank Non-Folding)

2шт.

10

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

(7-Shank folding)

2шт.

11

218-653

4 WAY CONNECTION,9/16"-18, 37 Degree

(Replaces Tee 218-593 - 7-Shank Folding)

2шт.

12

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

2шт.

13

25705021

COUPLING

3/4 SAEF

2шт.

14

25705012

COUPLING

Frame - Breakaway

1шт.

15

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

16

495-21044

WASHER,3/8"

1шт.

17

86992213

NUT

3/8, NC Stover

1шт.

18

87435657

HARNESS

Rear Hitch Wiring Extension

1шт.

19

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

20

86992211

NUT

1/4, NC, ZP

2шт.

21

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

22

85700693

NUT,5/8" - 11, Gr C

10шт.

23

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

8шт.

24

22510700

HOSE CLAMP,15.86mm

Cushion, 5/8

1шт.

25

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

(Up To Two Cushion Clamps)

1шт.

25

134-3

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 2", Gr 5, Full Thd

(Up To Four Cushion Clamps)

1шт.

26

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

(Two hose clamps) (5-Shank & 7-Shank Non-Folding)

2шт.

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

(Four Hose Clamps) (5-Shank & 7-Shank Non-Folding)

2шт.

27

06200125

HOSE CLAMP

2шт.

28

84210815

PLATE

Bolt, Rear Hitch

2шт.
