(35.100.04) - MAIN LIFT CYLINDER ASSEMBLY 398561A1

Запчасти Case IH 690 (35.100.04) - MAIN LIFT CYLINDER ASSEMBLY 398561A1

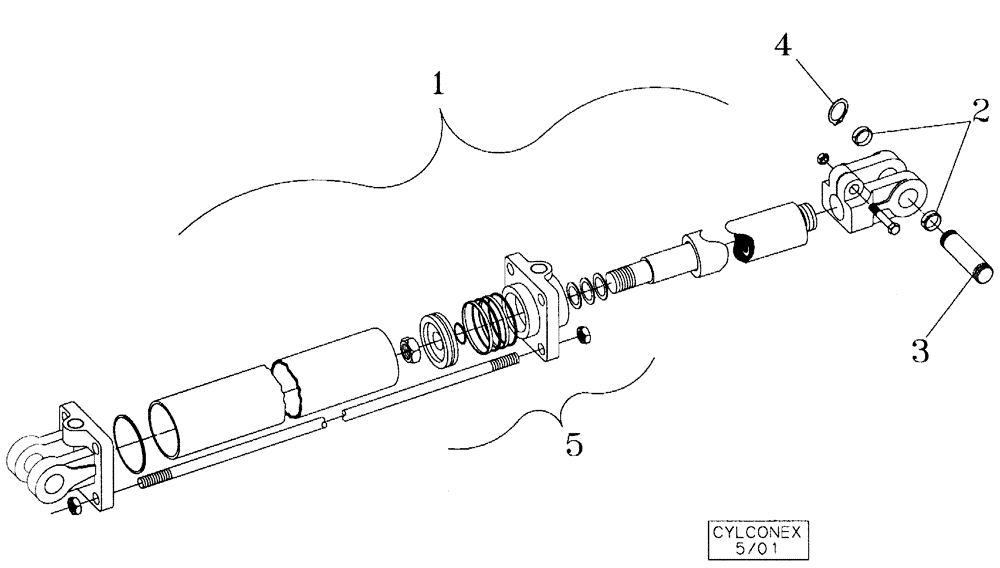

Схема запчастей Case IH 690 - (35.100.04) - MAIN LIFT CYLINDER ASSEMBLY 398561A1
4
1
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

398561A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 203.2mm Stroke

Hydraulic, 4 X 8, 3000 PSI, Main Lift

2шт.

2

44012500

BUSHING

Connex, 1-1/2 x 1-1/4xX 3/4

4шт.

NSS

NOT SOLD SEPARAT

Bag - 1-1/4 Cylinder Pins W/Retaining Rings (409851A1)

1шт.

3

427287A1

HEADLESS PIN

Cylinder, 1-1/4 Dia.

2шт.

4

103-16125

SNAP RING,#125, Ext

4шт.

5

47411164

KIT

4 x 8 Cylinder

2шт.
