(35.100.05) - REAR GANG WING FOLD CYLINDER ASSEMBLY 25320120

Запчасти Case IH 690 (35.100.05) - REAR GANG WING FOLD CYLINDER ASSEMBLY 25320120

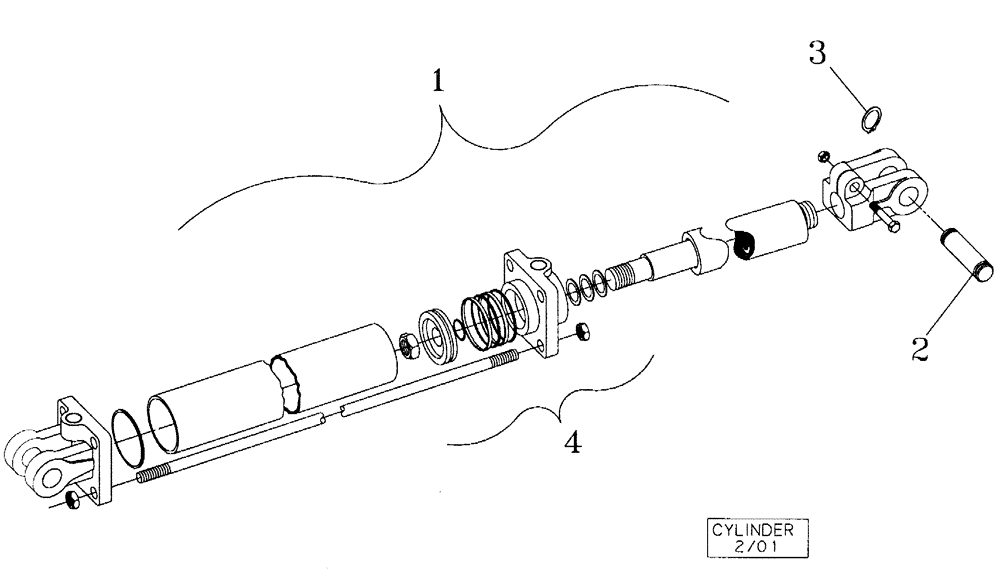

Схема запчастей Case IH 690 - (35.100.05) - REAR GANG WING FOLD CYLINDER ASSEMBLY 25320120
1
3
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

25320120

CYLINDER ASSY.,Double Acting, 28.57mm Rod, 304.8mm Stroke

Hydraulic, 2 x 12, 3000 PSI, Wing Fold

2шт.

NSS

NOT SOLD SEPARAT

Bag - 1 Cylinder Pins W/Retaining Rings (408043A1)

1шт.

2

427286A1

HEADLESS PIN

Cylinder, 1 Dia.

2шт.

3

103-1698

SNAP RING,#98, Ext

1 Shaft

4шт.

4

25833050

SEAL KIT

2 x 12

2шт.
