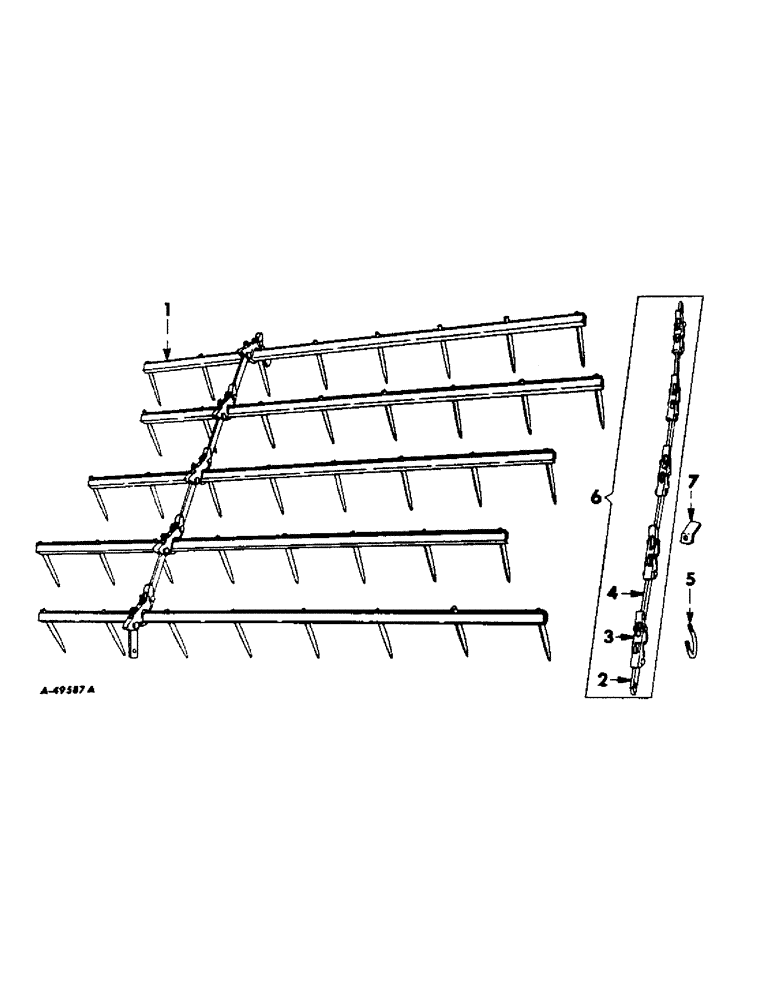

Запчасти Case IH 7 (A-09) - FLEXIBLE SECTIONS, OPEN END WITHOUT LEVER

1

459737R91

BAR ASSY, 5 ft. 3 in.

5шт.

1

459740R91

BAR ASSY, 6 ft.

5шт.

1

459743R91

BAR ASSY, 6 ft. 9 in.

5шт.

2

459749R1

LINK, draw

4шт.

3

459747R1

BRACKET

connection

10шт.

22165R1

RIVET, 7/16 X 1-3/8 C-Z b-hd

20шт.

4

459748R1

LINK, connecting

8шт.

5

459750R1

BOLT,7/16" - 14 x 2 7/8"

V-BOLT, 7/16

10шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex

20шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

20шт.

22-196R1

WASHER, 15/32 x 7/8 x 16 ga C-Z

20шт.

6

459746R91

BRACKET, connection

2шт.

7

459976R1

SPACER, at bar standard

6шт.
