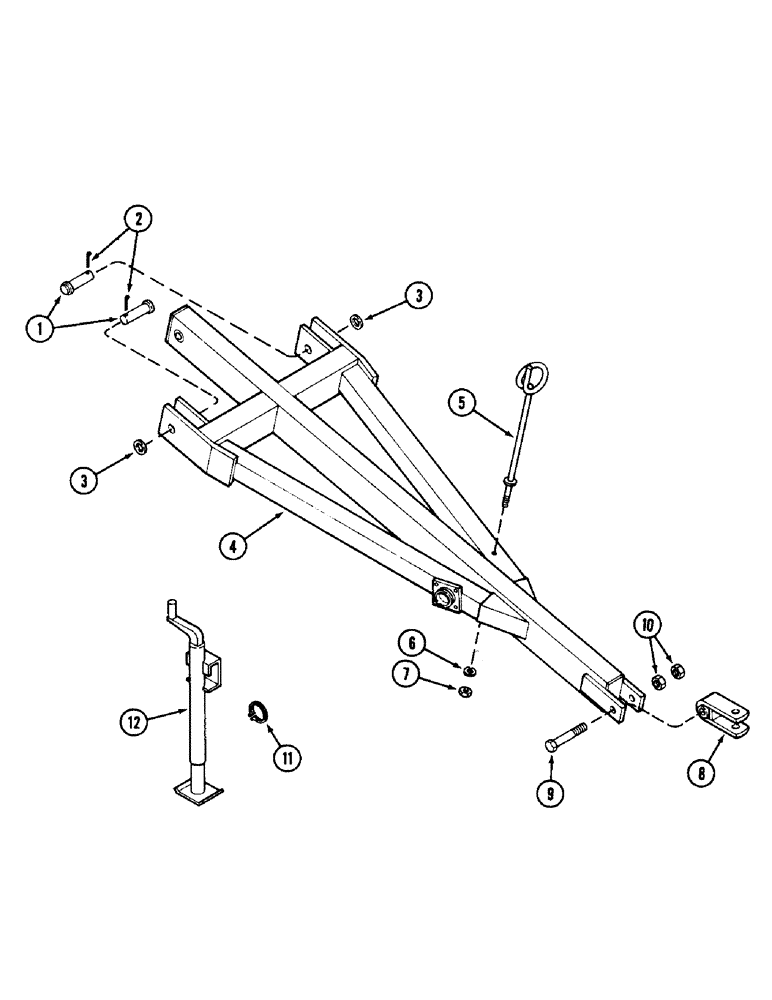

Запчасти Case IH DOT B (002) - HITCH, 11 AND 14 FOOT (3.4 AND 4.3 M)

1

T54872

PIN

- 1-1/4 x 4-3/8" (31.8 x 111.1 MM)

2шт.

2

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

3

195-113

WASHER,1 1/4"

- 3 x 1-3/8" x 8 gauge

2шт.

4

T57410

TRAILER HITCH

HITCH

1шт.

5

T54762

CARRIER - hose

1шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

8

T565259

CLEVIS - hitch

1шт.

9

113-929

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

- 1 x 6-1/2" NC hex (Grade 5)

1шт.

10

129-150

NUT,Jam, 1"-8, G5

- 1" NC hex

2шт.

11

T33700

SNAP RING,#250, Ext

Ring, Snap, #250, Ext

1шт.

12

T54768

JACK

- hitch

1шт.
