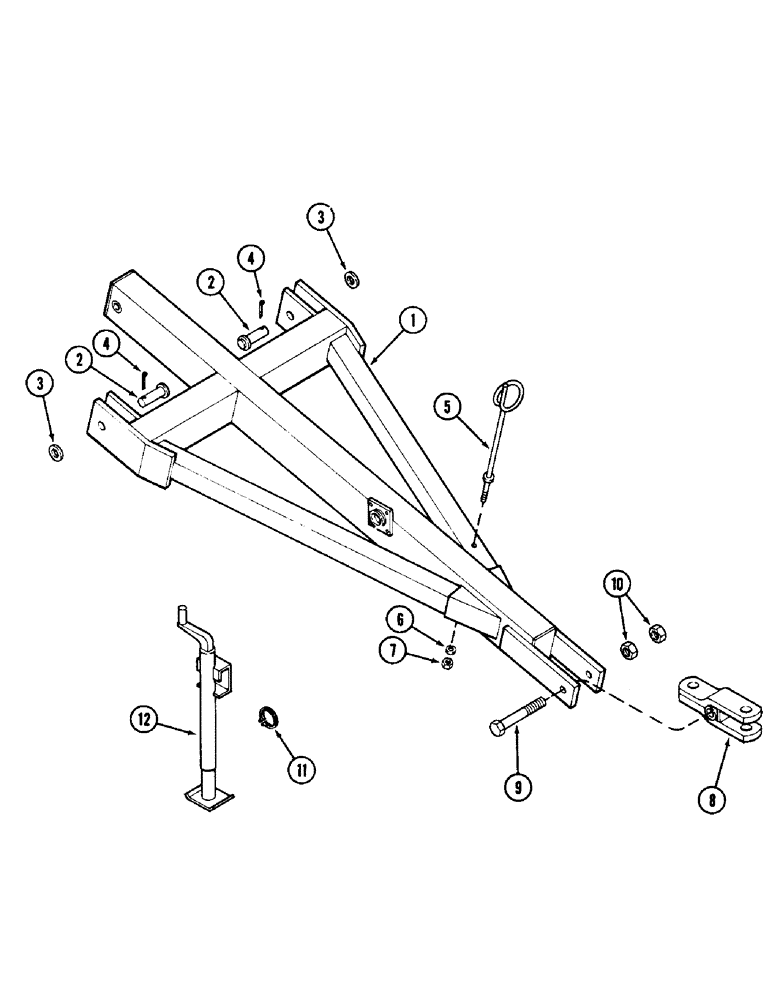

Запчасти Case IH DOT B (006) - HITCH, 25, 28 AND 31 FOOT (7.6, 8.5 AND 9.5 M)

1

T57411

TRAILER HITCH

HITCH

1шт.

2

T54872

PIN

- 1-1/4 x 4-3/8" (31.8 x 111.1 MM)

2шт.

3

195-113

WASHER,1 1/4"

- 3 x 1-3/8" x 8 gauge

2шт.

4

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

5

T54762

CARRIER - hose

1шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

8

T54873

CLEVIS

- hitch

1шт.

9

T55842

BOLT

- 1-1/4 x 8"

1шт.

10

129-152

JAM NUT,Jam, 1 1/4"-7, G5

- 1-1/4" NC hex

2шт.

11

T33700

SNAP RING,#250, Ext

Ring, Snap, #250, Ext

1шт.

12

T54768

JACK

- hitch

1шт.
