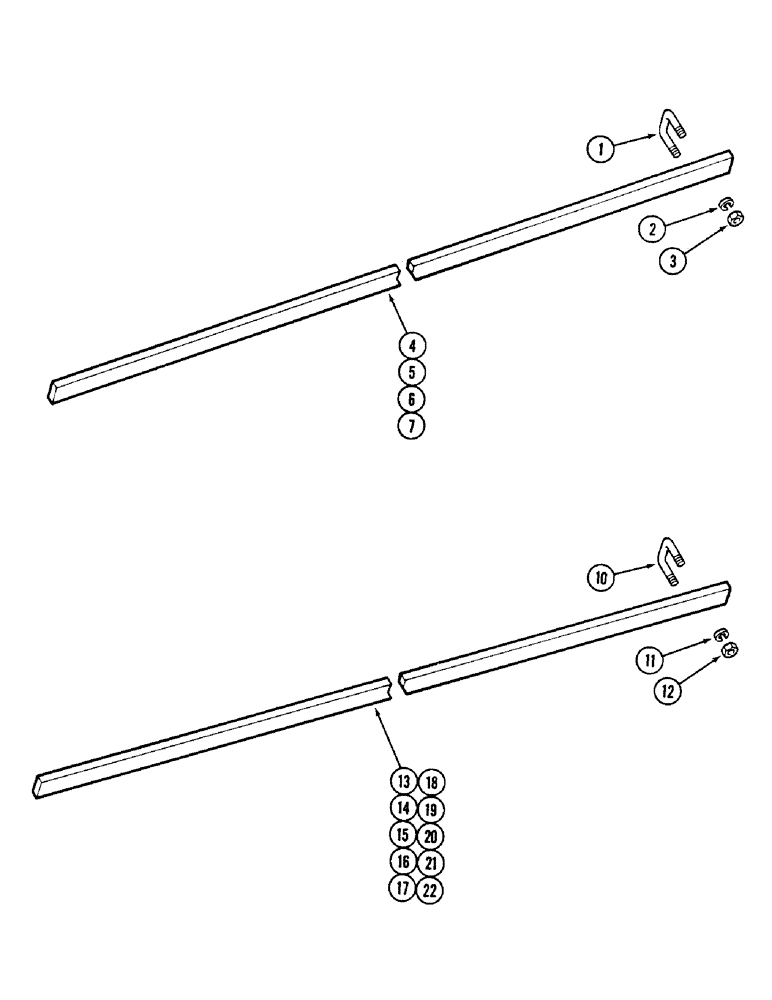

Запчасти Case IH DOT B (100) - SCRAPER BARS, MAIN GANG, FRONT CENTER RIGHT AND LEFT, 17 THROUGH 31 FOOT (5.2 THROUGH 9.5 M)

1

T54786

BOLT

U-BOLT

6шт.

2

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

3

129-105

NUT,Hex, 1/2" - 13, Gr 5

12шт.

4

T56463

BAR - scraper 17, 20 and 23 foot (5.2, 6.1 and 7.0 M) 62-1/2" (1587.5 MM)

2шт.

5

T54898

BAR - scraper 25, 28 and 31 foot (7.6, 8.5 and 9.5 M) 70" (1778.0 MM)

2шт.

1

T54786

BOLT

U-BOLT, rear center right and left

4шт.

2

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Rear center right and left 1/2"

8шт.

3

129-105

NUT,Hex, 1/2" - 13, Gr 5

Rear center right and left 1/2"-13, G5

8шт.

6

T56464

BAR - scraper 17, 20 and 23 foot (5.2, 6.1 and 7.0 M) 45" (1143.0 MM), rear center right and left

2шт.

7

T55823

BAR - scraper 25, 28 and 31 foot (7.6, 8.5 and 9.5 M) 53" (1346.2 MM), rear center right and left

2шт.

10

T54786

BOLT

U-BOLT - 17 foot (5.2 M), scraper bars - wing gang

4шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Scraper bars - wing gang 1/2"

8шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

Scraper bars - wing gang 1/2"-13, G5

8шт.

13

T56464

BAR - scraper (Front RH and LH) 17 foot (5.2 M) 45" (1143.0 MM), bars - wing gang

2шт.

14

T54898

BAR - scraper (Rear RH and LH) 17 foot (5.2 M) 70" (1778.0 MM), bars - wing gang

2шт.

10

T54786

BOLT

U-BOLT - 20, 23, 25 and 28 foot (6.1, 7.0, 7.6 and 8.5 M), scraper bars - wing gang

6шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Scraper bars - wing gang 1/2"

12шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

Scraper bars - wing gang 1/2"-13, G5

12шт.

15

T56463

BAR - scraper (Front RH and LH) 20 foot (6.1 M) 62-1/2" (1587.5 MM), wing gang

2шт.

16

T55821

BAR - scraper (Rear RH and LH) 20 foot (6.1 M) 89" (2260.6 MM), wing gang

2шт.

17

T54921

BAR - scraper (Front RH and LH) 23 and 25 foot (7.0 and 7.6 M) 78" (1981.2 MM), wing gang

2шт.

18

T55830

BAR - scraper (Rear RH and LH) 23 and 25 foot (7.0 and 7.6 M) 108" (2743.2 MM), wing gang

2шт.

19

T55822

BAR - scraper (Front RH and LH) 28 foot (8.5 M) 97" (2463.8 MM), wing gang

2шт.

20

T57527

BAR - scraper (Rear RH and LH) 28 foot (8.5 M) 125" (3175.0 MM), wing gang

2шт.

10

T54786

BOLT

U-BOLT - 31 foot (9.5 M), scraper bars - wing gang

8шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Scraper bars - wing gang 1/2"

16шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

Scraper bars - wing gang 1/2"-13, G5

16шт.

21

T54852

BAR - scraper (Front RH and LH) 31 foot (9.5 M) 116" (2946.4 MM), wing gang

2шт.

22

T57526

BAR - scraper (Rear RH and LH) 31 foot (9.5 M) 143" (3632.2 MM), wing gang

2шт.
