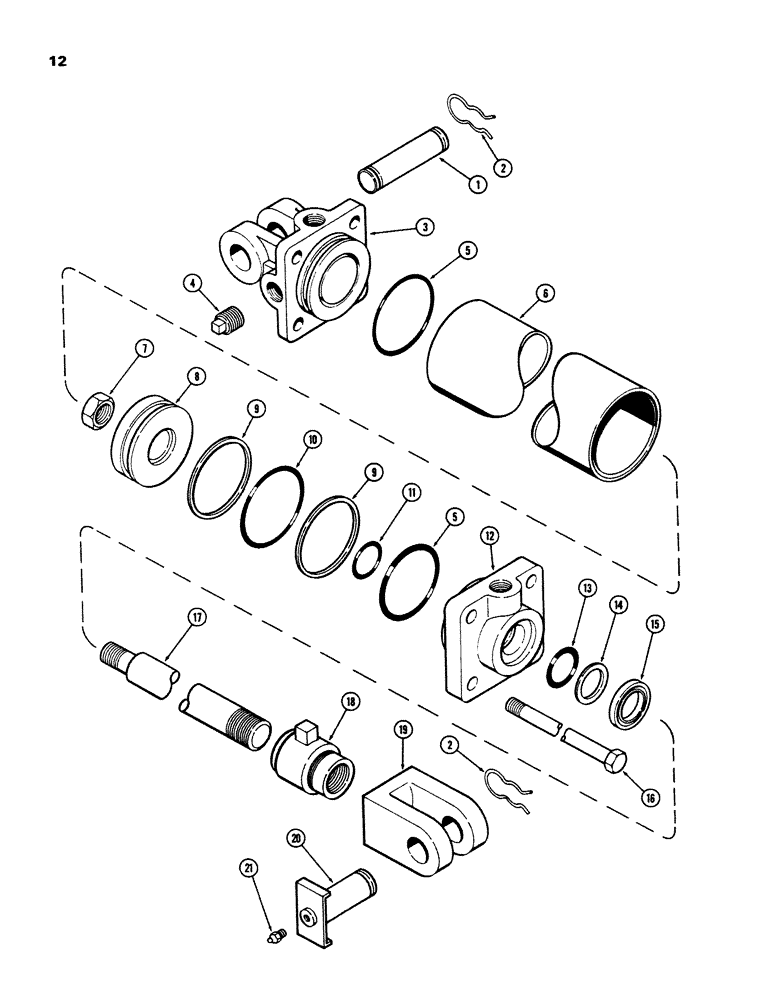

Запчасти Case IH K23B (12) - CYLINDER 4 X 8 INCH (101.6 X 203.2 MM)

T56660

CYLINDER

- hydraulic complete

1шт.

1

T52925

PIN

- clevis

1шт.

2

T56697

PIN

CLIP

3шт.

3

T52920

HEAD

BASE - cylinder

1шт.

4

221-1844

PLUG,Hex Soc, 1/2"-14

- pipe 1/2"

1шт.

5

T52928

O-RING

- 3-41/64 x 3-15/64 x .210" (92.5 x 82.2 x 5.6 mm)

2шт.

Part of seal kit T63124

1шт.

6

T52937

TUBE - cylinder

1шт.

7

131-1174

LOCK NUT,1 1/4"-14, GA

NUT - piston rod 1" NF

1шт.

8

T52939

PISTON

1шт.

9

A23535

OIL SEAL

WASHER - backup

2шт.

Part of seal kit T63124

1шт.

10

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

- 3-7/8 x 3-1/2 x 3/16" (98.4 x 88.9 x 4.8 mm)

1шт.

Part of seal kit T63124

1шт.

11

R15365

O-RING,0.989" ID x 1.129" OD x 0.07"

- 1-1/8 x 1 x 1/16" (28.6 x 25.4 x 1.6 mm)

1шт.

Part of seal kit T63124

1шт.

12

T52938

HEAD

- cylinder

1шт.

13

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- 1-3/4 x 1-1/2 x 1/8" (44.5 x 38.1 x 3.2 mm)

1шт.

Part of seal kit T63124

1шт.

14

H745687

WASHER

- backup

1шт.

Part of seal kit T63124

1шт.

15

T52945

WIPER SEAL

WIPER

1шт.

Part of seal kit T63124

1шт.

16

T52941

BOLT

ROD - ie

4шт.

17

T52936

ROD

- piston

1шт.

18

T52728

CONTROL

- stroke

1шт.

19

T56595

CLEVIS

1шт.

20

T56594

PIN

- clevis

1шт.

21

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16"

1шт.

T63124

SEAL,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

KIT - seal Includes Refs. 5, 9, 10, 11, 13, 14 and 15

1шт.
