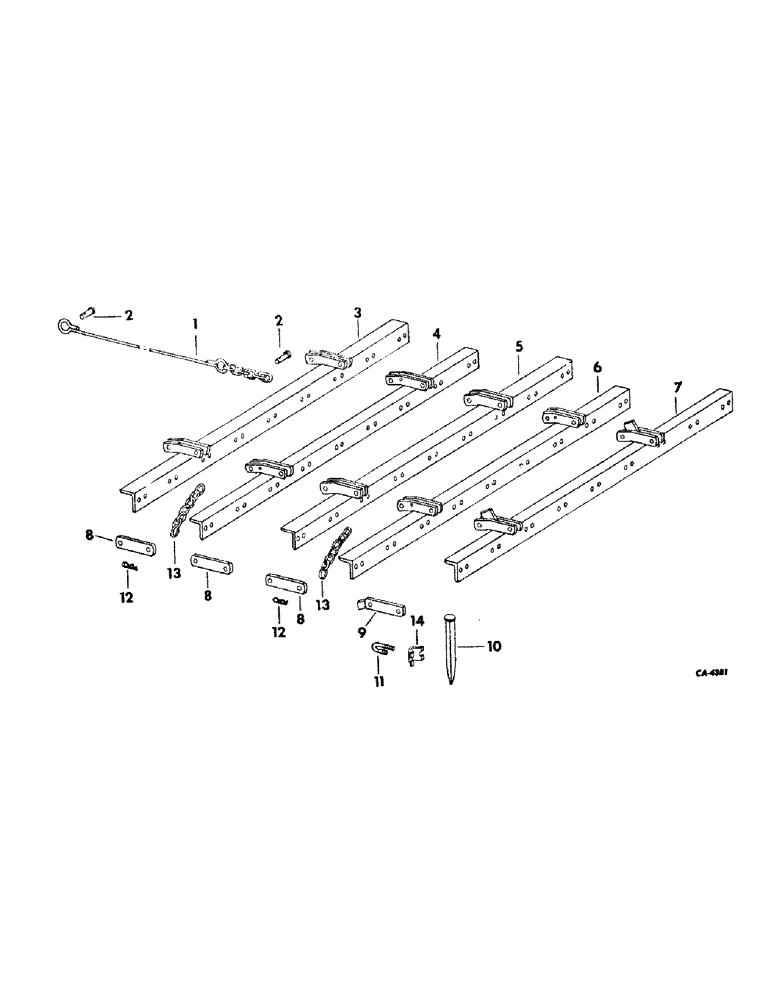

Запчасти Case IH 468 (A-16) - PEG TOOTH SECTION

1

138585C1

CHAIN (AG)

ROD, center harrow pull, replaces 62519C1, 2 used w/units B and C, 4 used w/unit D

1шт.

1

138609C1

CHAIN

ROD, center harrow pull, 2 used w/unit A

1шт.

1

138586C1

CHAIN (AG)

ROD, wing harrow pull, replaces 62540C1, 2 used w/unit A, 4 used w/units B, C and D

1шт.

2

21957R1

HEADED PIN,5/8" x 2"

PIN, 5/8 x 2 hd type 1, 2 per rod

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

3

62542C1

BAR

tooth no. 1, std, 2 used w;/unit A, 3 used w/units B and C, 4 used w/unit D

1шт.

3

62552C1

BAR

tooth no. 1, heavy duty, 2 used w/unit A, 3 used w/units B and C, 4 used w/unit D

1шт.

4

62543C1

BAR

tooth no. 2, std, 2 used w/unit A, 3 used w/units B and C, 4 used w/unit D

1шт.

4

62553C1

BAR

tooth no. 2 heavy duty, 2 used w/unit A, 3 used w/units B and C, 4 used w/unit D

1шт.

5

62544C1

BAR

tooth no. 3, std, 2 used w/unit A, 3 used w/units B and C, 4 used w/unit D

1шт.

5

62554C1

BAR

tooth no. 3, heavy duty, 2 used w/unit A, 3 used w/units B and C, 4 used w/unit D

1шт.

6

62545C1

BAR

tooth no. 4, std, 2 used w/unit A, 3 used w/units B and C, 4 used w/unit D

1шт.

6

62555C1

BAR

tooth no. 4, heavy duty, 2 used w/unit A, 3 used w/units B and C, 4 used w/unit D

1шт.

7

62546C1

ANGLE

BAR, tooth no. 5, std, 2 used w/unit A, 3 used w/units B and C, 4 used w/unit D

1шт.

7

62556C1

BAR

tooth no. 5, heavy duty, 2 used w/unit A, 3 used w/units B and C, 4 used w/unit D

1шт.

8

62547C1

BAR

CONNECTOR, tooth bar, 12 used w/unit A, 18 used w/units B and C, 24 used w/unit D

1шт.

9

62548C1

BAR

CONNECTOR, rear tooth bar, 1 per rod

1шт.

21957R1

HEADED PIN,5/8" x 2"

PIN, 5/8 x znd hd, 8 per rod

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), , 8 per rod 3/16" x 1 1/4"

1шт.

10

P23931

TOOTH

std, replaces 62549C2

1шт.

10

62576C1

TOOTH

heavy duty

1шт.

11

62551C1

U-BOLT,3/8" - 16 x 1.9", Carbon Steel

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

12

480523R1

HAIR PIN COTTER

quick attachable, 2 per rod

1шт.

13

CHAIN, 5/16 proof coil, use 20 links from 75 ft roll marked zan 4030336, 8 used w/unit A, 12 used w/units B and C, 16 used w/unit D

1шт.

21150R1

HEADED PIN,12.7mm OD x 57.15mm L

PIN, 1/2 x 2.250 hd type 1

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

Q1178

HEADED PIN,7/16" x 2 1/2"

PIN, 7/16 x 2-1/2 hd

2шт.

14

62550C1

CLAMP

tooth, used only on standard tooth bars and teeth, 1 per tooth

1шт.
