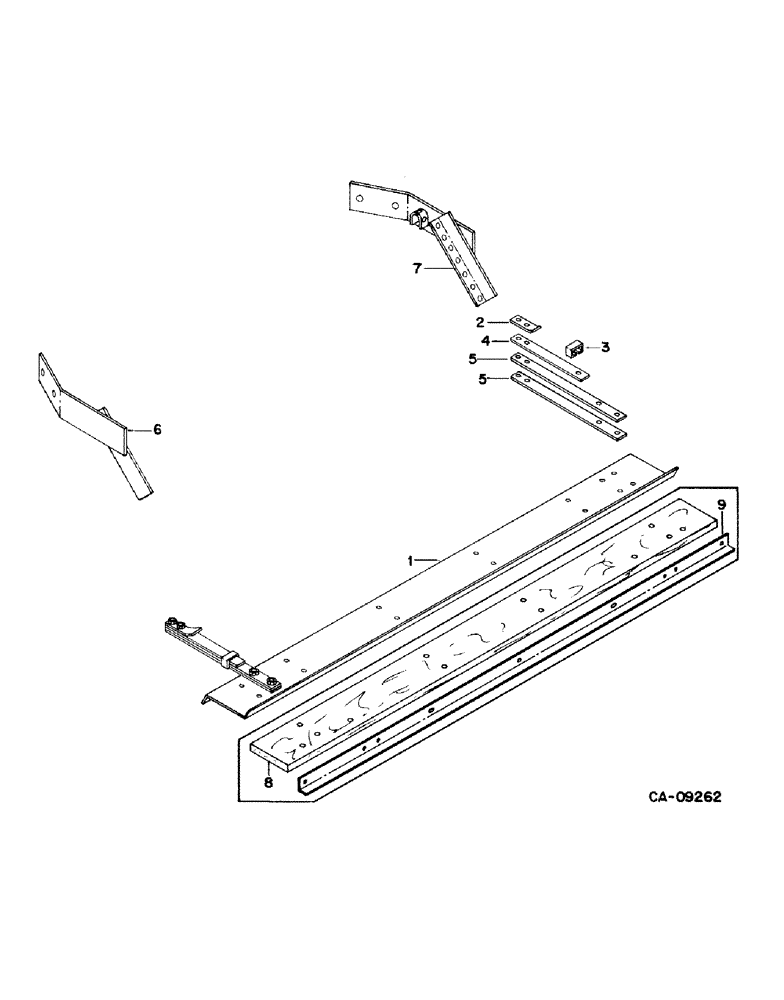

Запчасти Case IH 468 (A-18) - LEVELER

1

1251082C1

BOARD

LEVELER, (Straight) S/N 1998 & above, 1 used w/units A & D

1шт.

1251082C1 no longer available but interchangeable w/1251083C1

1шт.

1

1251083C1

BOARD

LEVELER, (S shaped as shown) S/N 1998 & above, 3 used w/unit B, 1 used w/unit C

1шт.

2

112509C2

BAR

CAP, leaf spring, 1 per short leaf

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2 x 2-1/2 znd hex-hd cap

2шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-11 x 3 znd hex-hd cap

2шт.

495-11053

WASHER,1/2", SAE

.531 x 1-1/16 x 15 ga znd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

3

62559C1

CLIP

BAR, leaf spring clip, 1 per short leaf

1шт.

4

62558C1

SPRING, LEAF

LEAF, short, (20") 4 used w/unit A, 6 used w/units B and C, 8 used w/unit D

1шт.

5

62557C1

SPRING, LEAF

LEAF, long, (30") 8 used w/unit A, 12 used w/units B and C, 16 used w/unit D

1шт.

6

138628C2

SPRING

MOUNT, leaf spring LH, unit A

1шт.

7

138629C2

SPRING

MOUNT, leaf spring RH, unit A

1шт.

8

145828C91

BOARD, center, S/N 1997 & below, replaces 62530C1, 1 used w/units A & D

1шт.

8

145829C91

BOARD

center, S/N 1997 & below, replaces 62531C1, 3 used w/unit B, 1 used w/unit C

1шт.

8

145830C91

BOARD, wing, S/N 1997 & below, replaces 62532C1, 2 used w/units C & D

1шт.

9

75413C1

ANGLE, skid board, S/N 1997 & below, replaces 62533C1 or 62534C1, 2 used w/unit A, 3 used w/unit B and C, 4 used w/unit D

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051 znd

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120376

NUT,5/16"-18, G5

3шт.
