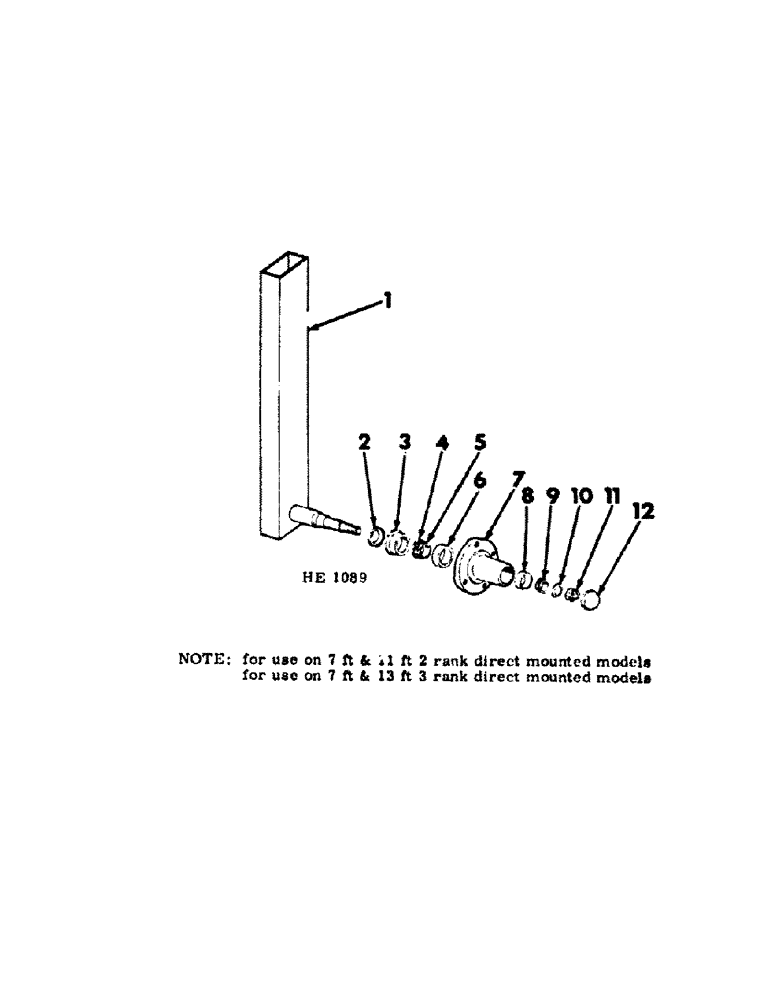

Запчасти Case IH 55 (07-17[A]) - GAUGE WHEEL AXLE & SPINDLE (SLIDE ADJUSTING TYPE)

1

812163C1

AXLE

gauge wheel

2шт.

2

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil seal wear (For use on machines built May, 1970 season & since)

2шт.

3

472222R1

SLEEVE

oil seal wear (Opt to use 472224R1, sleeve) (For use on machines built May, 1970 season & since)

2шт.

3

472224R1

SLEEVE

oil seal wear (Opt to use 472222R1, sleeve) (For use on machines built May, 1970 season & since)

2шт.

4

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

axle inner (For use on machines built prior to May, 1970 season)

2шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, hub inner brg (For use on machines built May, 1970 season & since)

2шт.

6

651817R1

BEARING CUP

CUP, hub inner brg (For use on machines built May, 1970 season & since)

2шт.

7

619353R1

HUB

wheel (For use on machines built prior to May, 1970 season)

2шт.

7

591535R1

HUB

wheel (For use on machines built May, 1970 season & since)

2шт.

8

651814R1

BEARING CUP

CUP, hub outer brg

2шт.

9

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, hub outer brg

2шт.

9

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

10

467750R1

WASHER

25/32 x 1-1/2 x 11 ga

2шт.

11

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4"-NF slt spindle

2шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

12

602959R1

PLUG

CAP, gauge wheel hub

2шт.
