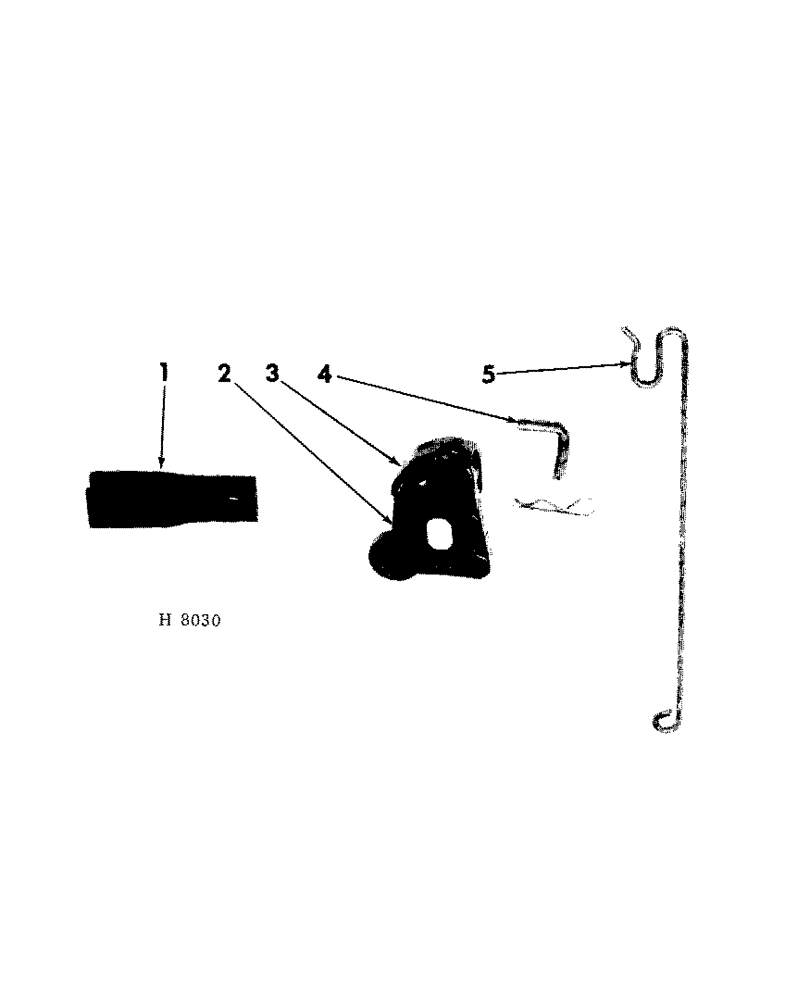

Запчасти Case IH 55 (08-05[A]) - HYDRAULIC LIFT PARTS

1

608313R11

YOKE

hyd locking

2шт.

PO28401

HEADED PIN,3/4" x 2 1/16"

LOCK-OUT YOKE PIN

2шт.

1/4 X 1-1/4" C-PIN

2шт.

2

602800R2

BRACKET

ANCHOR, hyd-cyl front

2шт.

3/4 X 2-1/2" MACH BOLT W/NUT

4шт.

3/4" LK-WASH.

4шт.

3

526263R1

RETAINER

hyd-cyl

2шт.

1/2 X 2-1/4" STD-HD DLD PIN

2шт.

3/16 X 1" C-PIN

2шт.

4

602801R1

PIN

retainer locking

2шт.

591107R1

COTTER PIN

QUICK-ATTACHABLE C-PIN

2шт.

5

651793R11

SUPPORT

ROD, hyd hose support (Includes 1 - bolt, 17525R1; 1 - lk-wash. 103325; 1 - nut, 102639 and 2 - wash., 575810R1)

2шт.

5/8 X 2" TYPE 2 BOLT W/NUT

2шт.

21/32 X 1-1/2 X 11 GA WASH.

4шт.

5/8" LK-WASH.

2шт.
