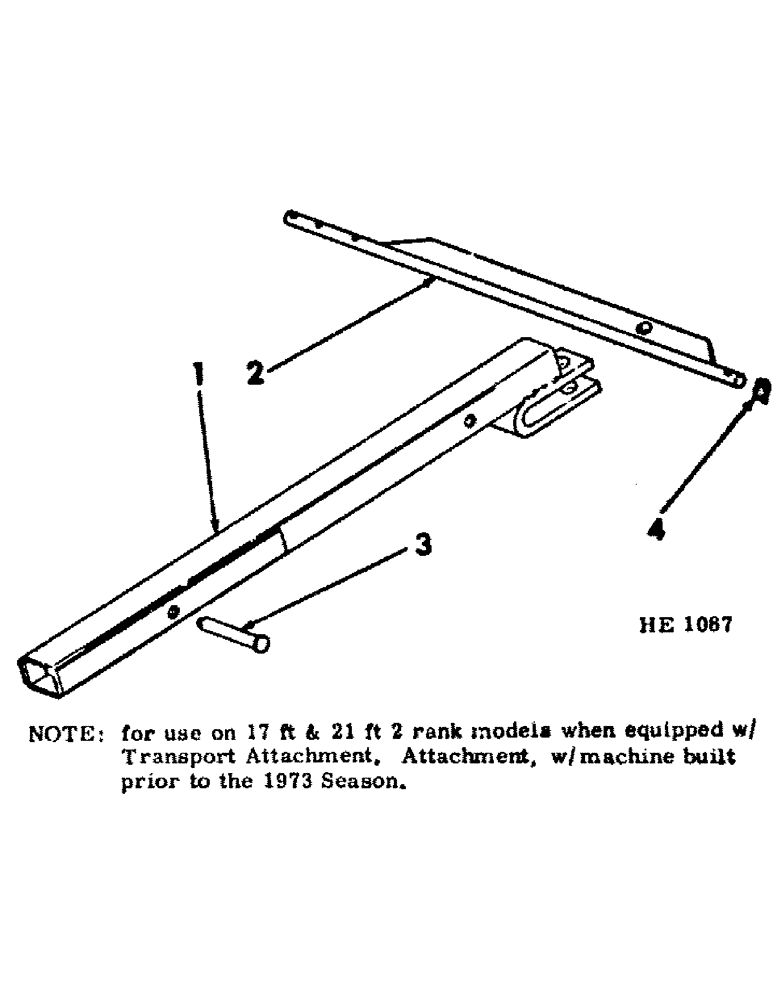

Запчасти Case IH 55 (07-04) - TRANSPORT DRAWBAR ATTACHMENT

1

599835R2

TUBE, transport hitch

1шт.

2

812137C1

BAR, hitch draw (For use on machines when tractor equipped w/category II or III hitches)

1шт.

23290R1

HEADED PIN,1" x 3 1/2"

1 X 3-1/2" STD-HD-DLD PIN

1шт.

614451R1

WASHER

1-1/32 X 1-3/4 X 11 GA. WASHER

1шт.

520175R1

CLIP

QUICK-ATTACHABLE C-PIN

1шт.

32-2032

COTTER PIN,5/16" x 2"

PIN, SPLIT (COTTER), 5/16" x 2"

1шт.

3

385159R91

PIN

drawbar locking

2шт.

4

599839R1

PIN, transport hitch tube

1шт.

599744R1

AXLE PIN

QUICK-ATTACHABLE C-PIN

1шт.
