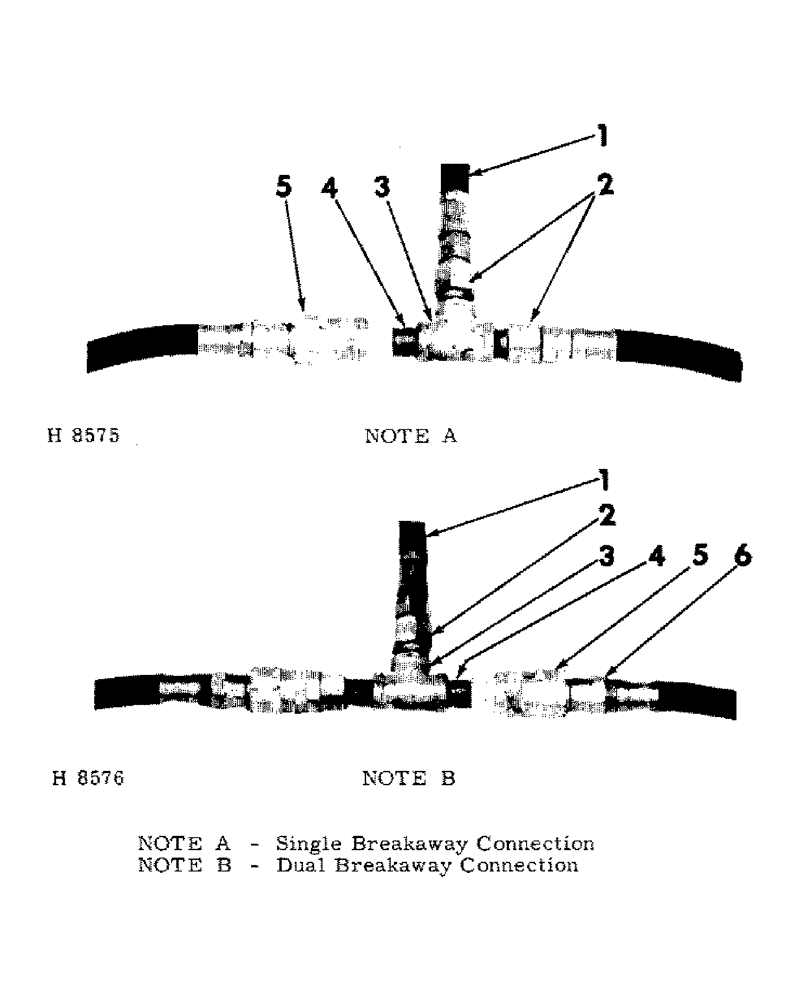

Запчасти Case IH 55 (08-09) - HYDRAULIC TEE CONNECTION

1

653323R91

HOSE, 1/2 x 45" hydraulic

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

HYDRAULIC HOSE "O" RING

4шт.

2

461183R1

ADAPTER,1/2" - 14 ORB x 7/8" - 14 ORB

UNION, adapter (4 - note A, 2 - note B)

1шт.

3

138105

TEE,1/2" NPT, Fem

1/2" pipe

2шт.

4

121208

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE, 1/2" pipe (2 - note A, 4 - note B)

1шт.

5

374597R92

COUPLING

ADAPTER, female (2 - note A, 4 - note B)

1шт.

6

374779R92

COUPLING

male (2 - note B)

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

COUPLING "O" RING

2шт.
