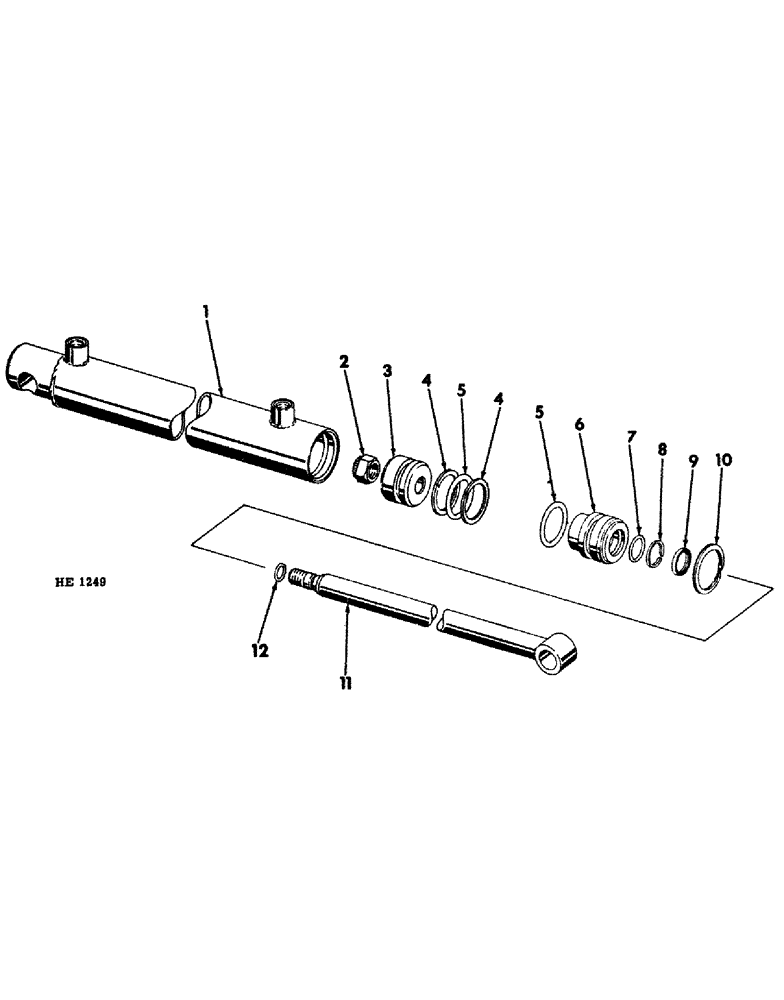

Запчасти Case IH 55 (13-14) - WING LIFT HYDRAULIC CYLINDER

811888C91

CYLINDER

wing lift hyd (Composed of all parts listed below)

1шт.

1

811846C1

BODY, hyd cyl

1шт.

2

811850C1

NUT

7/8"-NF cyl piston

1шт.

3

811849C1

PISTON

hyd cyl

1шт.

4

NSS

NOT SOLD SEPARAT

RING, piston back-up (For service order 1 - 811855C1, kit)

2шт.

5

NSS

NOT SOLD SEPARAT

O-RING, cyl head & piston (For service order 1 - 811855C1, kit)

2шт.

6

811848C1

HEAD

hyd cyl piston

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING, cyl head (For service order 1 - 811855C1, kit)

1шт.

8

NSS

NOT SOLD SEPARAT

RING, head back-up (For service order 1 - 811855C1, kit)

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL, piston head dust (For service order 1 - 811855C1, kit)

1шт.

10

25729R1

SNAP RING,#250, 2.653", Int, Spiral

RING, head retaining

1шт.

11

811847C1

ROD

hyd cyl piston

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING, piston rod (For service order 1 - 811855C1, kit)

1шт.

811855C1

SEAL KIT

hyd cyl seal repair, Composed of:

1шт.

NSS

NOT SOLD SEPARAT

O-RING

1шт.

NSS

NOT SOLD SEPARAT

O-RING

2шт.

NSS

NOT SOLD SEPARAT

O-RING

1шт.

NSS

NOT SOLD SEPARAT

RING

2шт.

NSS

NOT SOLD SEPARAT

RING

1шт.

NSS

NOT SOLD SEPARAT

SEAL

1шт.
