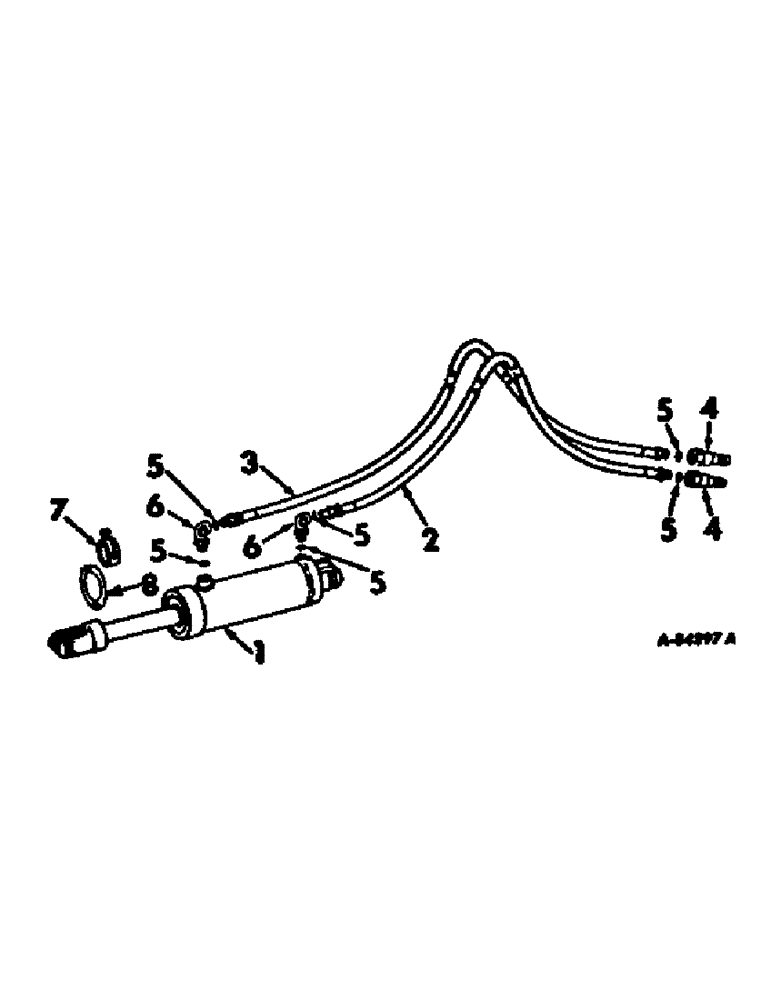

Запчасти Case IH 315 (A-22[B]) - HYDRAULIC CYLINDER AND CONNECTIONS MACHINES BUILT 1977 AND SINCE UNITS A, B AND C

1

388688R95

CYLINDER

ASSY, 4 x 8 in. double acting hydraulic, for components, see list of parts under details of hydraulic cylinder

1шт.

1

1343711C1R

REMAN-HYD CYLINDER

315 INTERNATIONAL HARVESTER PACKER-MULCHER, ASSY, 4 x 8 in. double acting hydraulic (1/69-12/79), Reman for New PN 388688R95

1шт.

1

1343711C1C

REMAN-HYD CYLINDER

Return Number

1шт.

2

542516R1

HOSE

1/2 x 144 in.

1шт.

3

630457R91

HOSE ASSY.

HOSE, 1/2 x 132 in.

1шт.

4

395149R1

QUICK MALE COUPLING

COUPLING ASSY, male str-thd

2шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

6шт.

6

371357R91

ELBOW

7/8-14 adjustable

2шт.

7

479849R91

PACKAGE

STOP ASSY, 1/2 in. hyd cyl

1шт.

7

643259R91

STOP

ASSY, 3/4 in. hyd cyl

1шт.

7

479850R91

PACKAGE

STOP ASSY, 1 in. hyd cyl

1шт.

7

643260R91

PACKAGE

STOP ASSY, 1-1/2 in. hyd cyl

1шт.

8

(Not used this application)

1шт.

479853R91

PACKAGE

hyd cyl stop, consists of (1) stop 479849R91, (1) stop 643259R91, (1) stop 479850R91, (1) stop 643260R91

1шт.

63443C91

CYLINDER ASSY, 4 x 8 in. double acting hydraulic, for components, see list of parts under details of hyd cyl

1шт.

62518C1

HOSE

ASSY, 1/2 x .132 in.

1шт.

63504C1

HOSE

ASSY, 1/2 x .144 in.

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

2шт.

108686

ELBOW,90 Degree, 1/2" NPT Street

1/2 x 90 deg street

2шт.

479853R91

PACKAGE

hyd cyl stop, consists of (1) stop, 1/2 479849R91, (1) stop, 3/4 643259R91, (1) stop, 1 in. 479850R91, (1) stop, 1-1/2 643260R91

1шт.

548001R92

CYLINDER

ASSY, 4 x 8 in. double acting hydraulic, for components, see list of parts under details of hydraulic cylinder, replaces 63443C91

1шт.

63504C1

HOSE

ASSY, 1/2 x .144 in.

1шт.

62518C1

HOSE

ASSY, 1/2 x .132 in.

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

2шт.

108686

ELBOW,90 Degree, 1/2" NPT Street

1/2 x 90 deg street

2шт.

479853R91

PACKAGE

hyd cyl stop, consists of (1) stop, 1/2 479849R91, (1) stop, 3/4 643259R91, (1) stop, 1 in. 479850R91, (1) stop, 1-1/2, 643260R91

1шт.
