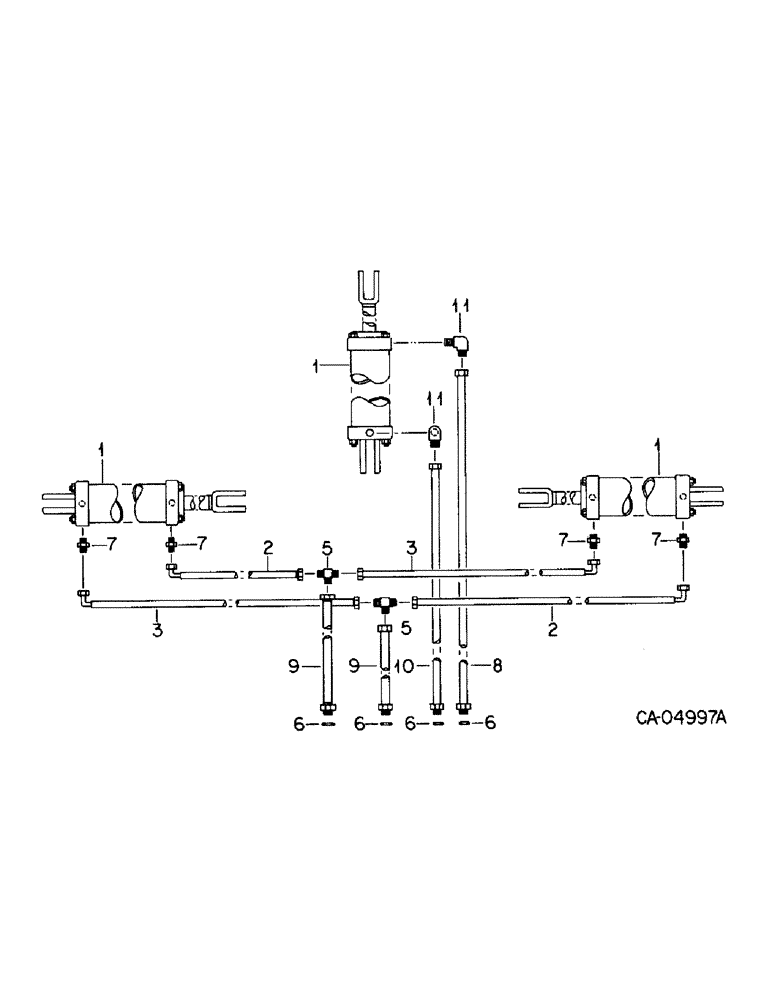

Запчасти Case IH 315 (A-23[A]) - HYDRAULIC CYLINDER AND CONNECTIONS UNIT D AND E MACHINES BUILT 1976 TO 1977

1

61110C91

CYLINDER

ASSY, 3-1/2 x 16 in. double acting hydraulic, for components, see list of parts under details of hyd cylinder, replaces 63551C91

3шт.

2

100849C1

HOSE

ASSY, hyd 64 in.

2шт.

3

60233C1

HOSE

ASSY, hyd 54 in.

2шт.

4

(Not used)

1шт.

5

673568R1

TEE

hose connecting

2шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

4шт.

7

607728R1

HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-14, NPTF

CONNECTOR, 1/2 NPTF to 3/8 tube

4шт.

8

540005R1

HOSE

ASSY, hyd 190 in.

1шт.

9

540004R1

HOSE ASSY, hyd 155 in.

2шт.

10

121054C1

HOSE

ASSY, hyd 174 in.

1шт.

11

9402866

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

90 deg 1/2 NPTF to 37 deg flare tube

2шт.

63551C91

CYLINDER ASSY, 3-1/2 x 16 in., for components, see list of parts under details of hyd cyl, replaces by 61110C91

1шт.

60233C1

HOSE

ASSY, 54 in.

2шт.

100849C1

HOSE

ASSY, 64 in.

2шт.

364885C1

O-RING

5/8 tube

2шт.

673568R1

TEE

2шт.

540004R1

HOSE ASSY, .155 in.

2шт.

607728R1

HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-14, NPTF

CONNECTOR, 1/2 NPTF to 37 deg

4шт.

540005R1

HOSE

ASSY, .190 in.

1шт.

121054C1

HOSE

ASSY, .174 in.

1шт.

9402866

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

90 deg 1/2 NPTF to 37 deg

2шт.
