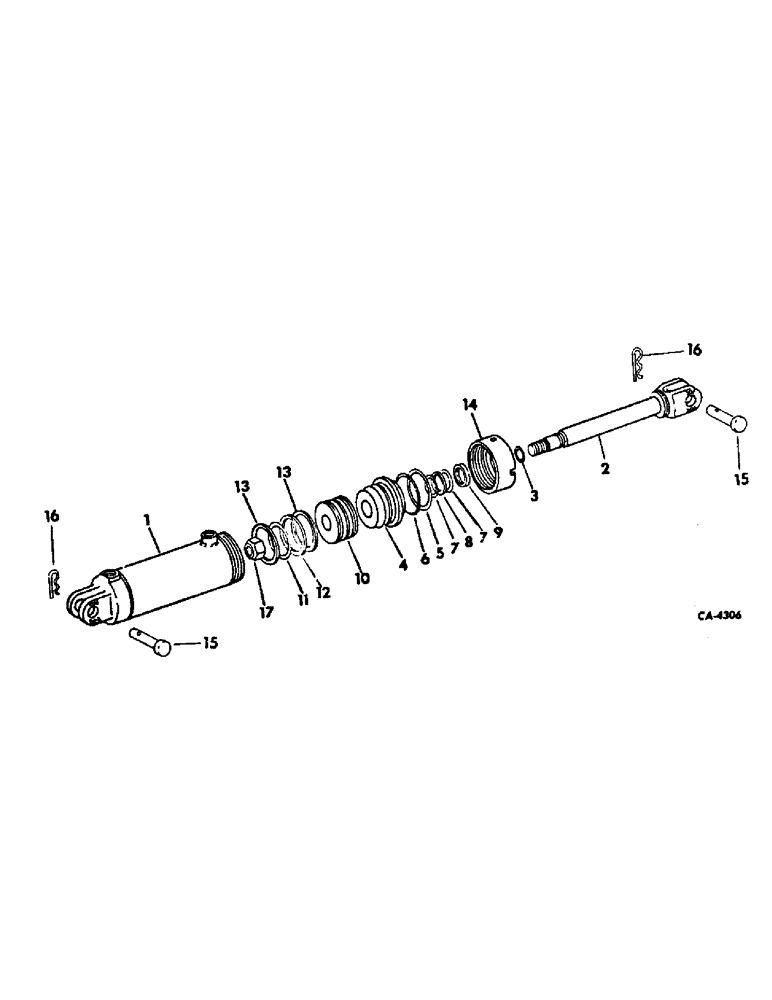

Запчасти Case IH 315 (A-24) - HYDRAULIC CYLINDER, MACHINES BUILT 1969 TO 1975, UNITS A, B AND C

388688R95

CYLINDER

ASSY, hydraulic, 4 x 8, double acting

1шт.

1343711C1R

REMAN-HYD CYLINDER

315 INTERNATIONAL HARVESTER PACKER-MULCHER, ASSY, hydraulic, 4 x 8 double acting (1/69-12/79), Reman for New PN 388688R95

1шт.

1343711C1C

REMAN-HYD CYLINDER

Return Number

1шт.

1

388689R12

BODY ASSY, cylinder

1шт.

2

388691R31

ROD

ASSY, piston

1шт.

3

350818R1

O-RING,0.984" ID x 0.139" Width

1 x 1-1/4 x 1/8, piston rod static

1шт.

4

388693R1

END

HEAD, cylinder front

1шт.

5

381107R1

BACK-UP RING

WASHER, front head backup

1шт.

6

347801R1

O-RING,0.21" Thk x 3.6" ID, -342, Cl 6, 90 Duro

3-5/8 x 4 x 3/16, front head

1шт.

7

387362R2

BACK-UP RING

WASHER, piston rod backup

2шт.

8

403995R1

RING

quad

1шт.

9

403845R1

WIPER SEAL

WIPER, piston rod

1шт.

10

388694R1

PISTON ASSY.

PISTON

1шт.

11

381109R1

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

3-1/2 x 3-11/16 x 3/32, piston seal

1шт.

12

381110R1

RING

piston seal

1шт.

13

383006R1

RING

piston bearing

2шт.

14

381111R1

RING

retaining

1шт.

15

64560C1

HEADED PIN

PIN, pivot

2шт.

16

520175R1

CLIP

PIN, Q.A. cot.

2шт.

17

25126R1

LOCK NUT,1 1/8"-12, GC

NUT, 1-1/8-12 PHC, piston rod lock

1шт.

388983R92

KIT

PACKAGE, o-ring service, consists of (1) ring 350818R1, (1) ring 347801R1, (2) ring 383006R1, (1) washer 381107R1, (1) ring 381109R1, (1) seal 381110R1, (2) washer 387362R2, (1) ring 403995R1, (1) wiper 403845R1

1шт.

2751852R1

PRODUCT GRAPHIC, International

1шт.

2752588R3

PRODUCT GRAPHIC, hyd cyl

1шт.
