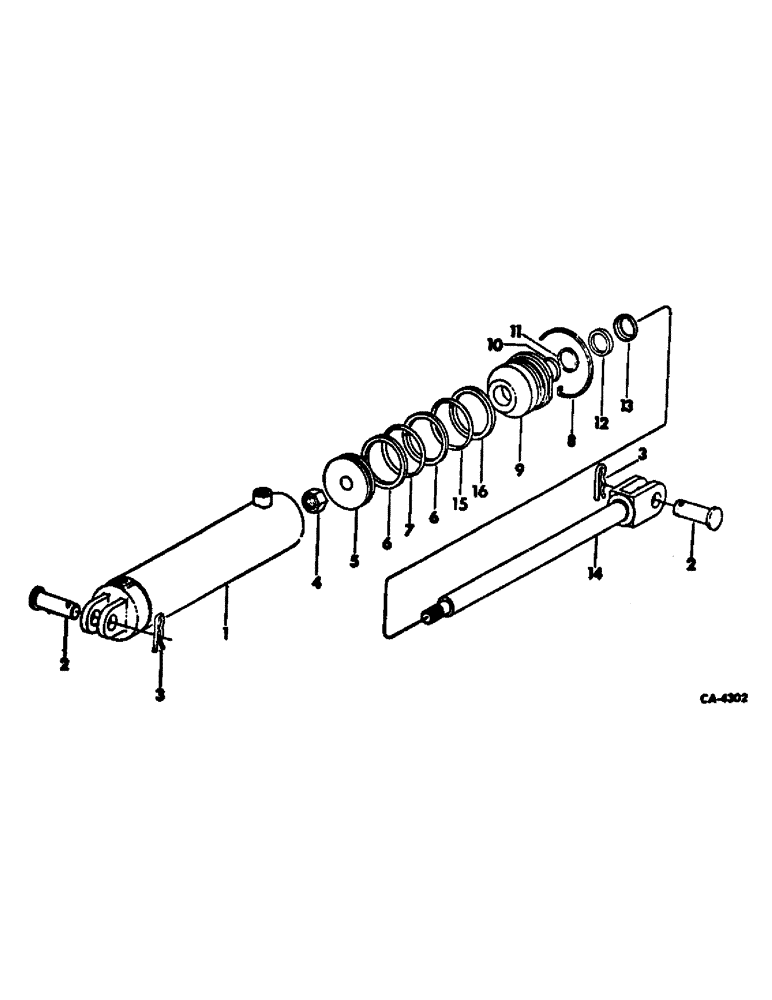

Запчасти Case IH 315 (A-29) - HYDRAULIC CYLINDER, MACHINES BUILT 1977 AND SINCE, UNITS D AND E

61110C91

CYLINDER

ASSY, hydraulic 3-1/2 x 16

1шт.

1

61111C1

BODY

ASSY

1шт.

2

60909C1

PIN

headed

2шт.

3

520175R1

CLIP

PIN, quick-attachable cot.

2шт.

4

9413974

LOCK NUT,7/8"-14, GB

NUT, 7/8-14 lock

1шт.

5

547724R1

PISTON

ROD ASSY, piston

1шт.

6

375936R1

BACK-UP RING

WASHER, backup

2шт.

7

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 3/16

1шт.

8

405002R1

RING

RETAINER, front head

1шт.

9

60299C1

HEAD

front

1шт.

10

378735R1

O-RING,1.475" ID x 0.21" Width

1/1/4 x 1-1/2 x 1/8

1шт.

11

403622R1

BACK-UP RING

WASHER, back-up

1шт.

12

383770R1

WASHER

WIPER, piston rod

1шт.

13

383771R1

SEALING WASHER

RETAINER, piston rod wiper

1шт.

14

547742R1

ROD

ASSY, piston

1шт.

15

343940R1

O-RING,3.234" ID x 0.139" Width

3-1/4 x 3-1/2 x 1/8

1шт.

16

404015R1

BACK-UP RING

WASHER, backup

1шт.

76459C91

CYLINDER ASSY, 3-1/2 x 16, for service replacement order 61110C91, hydraulic cylinder, machines built 1977 and since units d and e

1шт.

76460C1

ROD

ASSY, tie, hydraulic cylinder, machines built 1977 and since, units d and e

4шт.

124634

NUT,9/16"-18, G5

Hydraulic cylinder, machines built 1977 and since, units D and E 9/16"-18, G5

4шт.

76461C1

YOKE

hydraulic cylinder, machines built 1977 and since, units d and e

1шт.

75777C1

PIN

hydraulic cylinder, machines built 1977 and since, units d and e

1шт.

75757C1

PLUG

NUT, plug, hydraulic cylinder, machines built 1977 and since, units d and e

1шт.

76462C1

SLEEVE

hydraulic cylinder, machines built 1977 and since, units d and e

1шт.

76463C1

END

hydraulic cylinder, machines built 1977 and since, units d and e

1шт.

76464C1

ROD

hydraulic cylinder, machines built 1977 and since, units d and e

1шт.

75761C1

PISTON

hydraulic cylinder, machines built 1977 and since, units d and e

1шт.

75762C1

NUT

piston, hydraulic cylinder, machines built 1977 and since, units d and e

1шт.

75781C1

FORK

YOKE, hydraulic cylinder, machines built 1977 and since, units d and e

1шт.

75782C1

PIN

hydraulic cylinder, machines built 1977 and since, units d and e

1шт.

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW, 3/8 x 1-3/4 pln h/shd cap, hydraulic cylinder, machines built 1977 and since, units d and e

1шт.

480523R1

HAIR PIN COTTER

PIN, clip, hydraulic cylinder, machines built 1977 and since, units d and e

1шт.

76465C1

SEAL

KIT, repair, hydraulic cylinder, machines built 1977 and since, units d and e

1шт.
