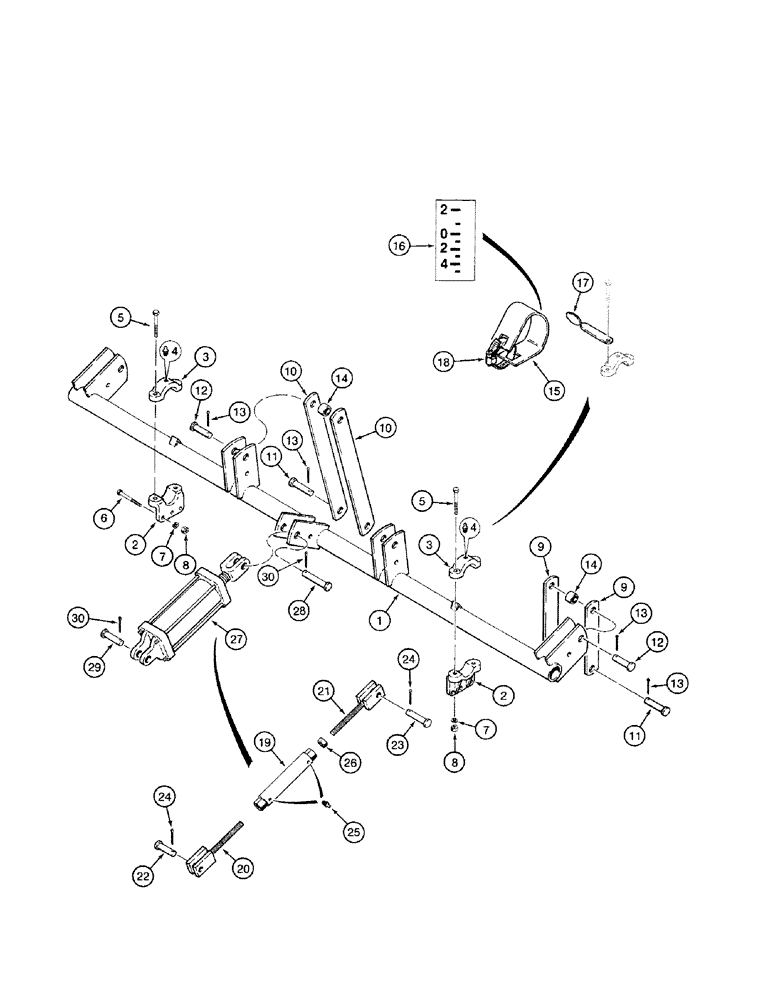

Запчасти Case IH 4200 (09-15) - DISC GANG ROCKSHAFTS, MAIN FRAME (09) - CHASSIS/ATTACHMENTS

1

1960736C1

ROCKSHAFT

- disc gang, main frame

1шт.

2

608312R2

BRACKET

- rockshaft

2шт.

3

1256960C1

BEARING CAP,78 mm ID x 44.5 mm

- rockshaft bearing

2шт.

4

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4 inch NF

2шт.

5

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

4шт.

6

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

8

425-1010

NUT,5/8"-11, G5

8шт.

9

1969016C1

BAR

- 349 mm long, gang lift arm

4шт.

10

1960735C1

BAR

- 576 mm long, gang lift arm

4шт.

11

27257R1

HEADED PIN,1" x 3"

PIN - headed, 1 x 3 inch

4шт.

12

24581R1

PIN

- headed, 1 x 3-1/2 inch

4шт.

13

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

8шт.

14

557056R1

SPACER,1" Pipe x 1"

- 1 inch long

1шт.

15

100871A1

STRAP

GAUGE - disc gang depth, purchase decal separately

1шт.

16

1547335C1

DECAL

- disc gang depth

1шт.

17

100870A1

INDICATOR

- gauge

1шт.

18

214-263

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - adj, 2-9/16 - 3-1/2 inch dia

1шт.

19

480249R1

TRUSS ROD

TURNBUCKLE - landing, turnbuckle mounting, if used

1шт.

20

1344919C1

CLEVIS

ROD - clevis, left-hand thread, turnbuckle mounting, if used

1шт.

21

1344920C1

CLEVIS

ROD - clevis, right-hand thread, turnbuckle mounting, if used

1шт.

22

810751C1

PIN

- headed, 1 x 3-1/4 inch, turnbuckle mounting, if used

1шт.

23

439-11668

HEADED PIN,25.4mm OD x 107.95mm L

PIN - headed, 1 x 4-1/4 inch long, turnbuckle mounting, if used

1шт.

24

32-1624

COTTER PIN,1/4" x 1 1/2"

PIN, SPLIT (COTTER), , Turnbuckle mounting, if used 1/4" x 1 1/2"

2шт.

25

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32", Turnbuckle mounting, if used

2шт.

26

425-1016

NUT,1"-8, G5

- hex, 1 inch NC, Turnbuckle mounting, if used

1шт.

27

REF

INSTRUCTION

CYLINDER ASSEMBLY - disc gang control, if used, see pages 8-3, 8-5B, or 8-7B for correct assembly, cylinder mounting, if used

1шт.

28

439-11668

HEADED PIN,25.4mm OD x 107.95mm L

PIN - headed, 1 x 4-1/4 inch long, cylinder mounting, if used

1шт.

29

810751C1

PIN

- headed, 1 x 3-1/4 inch, cylinder mounting, if used

1шт.

30

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2", Cylinder mounting, if used

2шт.
