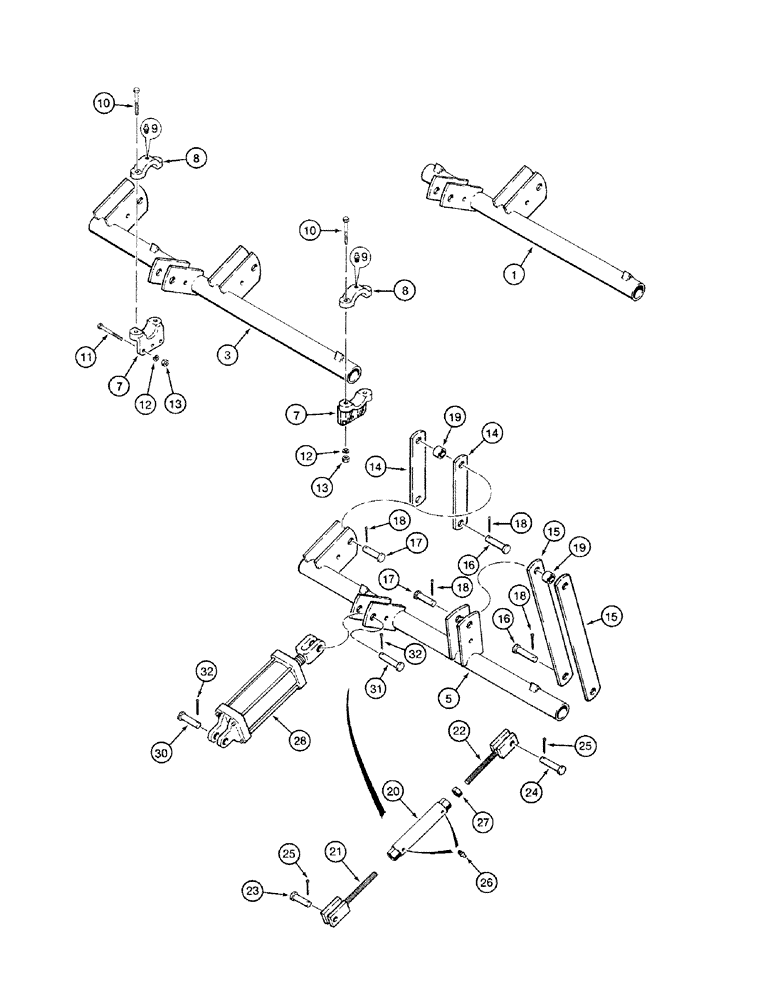

Запчасти Case IH 4200 (09-16) - DISC GANG ROCKSHAFTS, WING FRAME (09) - CHASSIS/ATTACHMENTS

1

1995739C1

ROCKSHAFT

- wing frame, left-hand, 20 ft 8 inch models

1шт.

2

1995740C1

ROCKSHAFT

- wing frame, right-hand, 20 ft 8 inch models not shown

1шт.

3

1995637C1

ROCKSHAFT

- wing frame, left-hand, 26 ft 2 inch models

1шт.

4

1995638C1

ROCKSHAFT

- wing frame, right-hand, 26 ft 2 inch models not shown

1шт.

5

1986218C1

ROCKSHAFT

- wing frame, left-hand, 30 ft 8 inch and 34 ft 1 inch models

1шт.

6

1986242C1

ROCKSHAFT

- wing frame, right-hand, 30 ft 8 inch and 34 ft 1 inch models, not shown

1шт.

7

608312R2

BRACKET

- rockshaft

4шт.

8

1256960C1

BEARING CAP,78 mm ID x 44.5 mm

- rockshaft bearing

4шт.

9

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4 inch NF

4шт.

10

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

8шт.

11

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

8шт.

12

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

13

425-1010

NUT,5/8"-11, G5

16шт.

14

1969016C1

BAR

- 349 mm long, gang lift arm

1шт.

15

1960735C1

BAR

- 576 mm long, gang lift arm

1шт.

16

27257R1

HEADED PIN,1" x 3"

PIN - headed, 1 x 3 inch

1шт.

17

24581R1

PIN

- headed, 1 x 3-1/2 inch

1шт.

18

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

19

557056R1

SPACER,1" Pipe x 1"

- 1 inch long

1шт.

20

480249R1

TRUSS ROD

TURNBUCKLE - landing, turnbuckle mounting, if used

2шт.

21

1344919C1

CLEVIS

ROD - clevis, left-hand thread, turnbuckle mounting, if used

2шт.

22

1344920C1

CLEVIS

ROD - clevis, right-hand thread, turnbuckle mounting, if used

2шт.

23

810751C1

PIN

- headed, 1 x 3-1/4 inch, turnbuckle mounting, if used

2шт.

24

439-11668

HEADED PIN,25.4mm OD x 107.95mm L

PIN - headed, 1 x 4-1/4 inch long, turnbuckle mounting, if used

2шт.

25

32-1624

COTTER PIN,1/4" x 1 1/2"

PIN, SPLIT (COTTER), , Turnbuckle mounting, if used 1/4" x 1 1/2"

4шт.

26

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32", Turnbuckle mounting, if used

4шт.

27

425-1016

NUT,1"-8, G5

- hex, 1 inch NC, Turnbuckle mounting, if used

2шт.

28

REF

INSTRUCTION

CYLINDER ASSEMBLY - disc gang control, left-hand, see pages 8-7 or 8-11 for correct assembly, cylinder mounting, if used

1шт.

29

REF

INSTRUCTION

CYLINDER ASSEMBLY - disc gang control, right-hand, see page 8-7 or 8-11 for correct assembly, not shown, cylinder mounting, if used

1шт.

30

810751C1

PIN

- headed, 1 x 3-1/4 inch, cylinder mounting, if used

2шт.

31

439-11668

HEADED PIN,25.4mm OD x 107.95mm L

PIN - headed, 1 x 4-1/4 inch long, cylinder mounting, if used

2шт.

32

32-1624

COTTER PIN,1/4" x 1 1/2"

PIN, SPLIT (COTTER), , Cylinder mounting, if used 1/4" x 1 1/2"

4шт.
