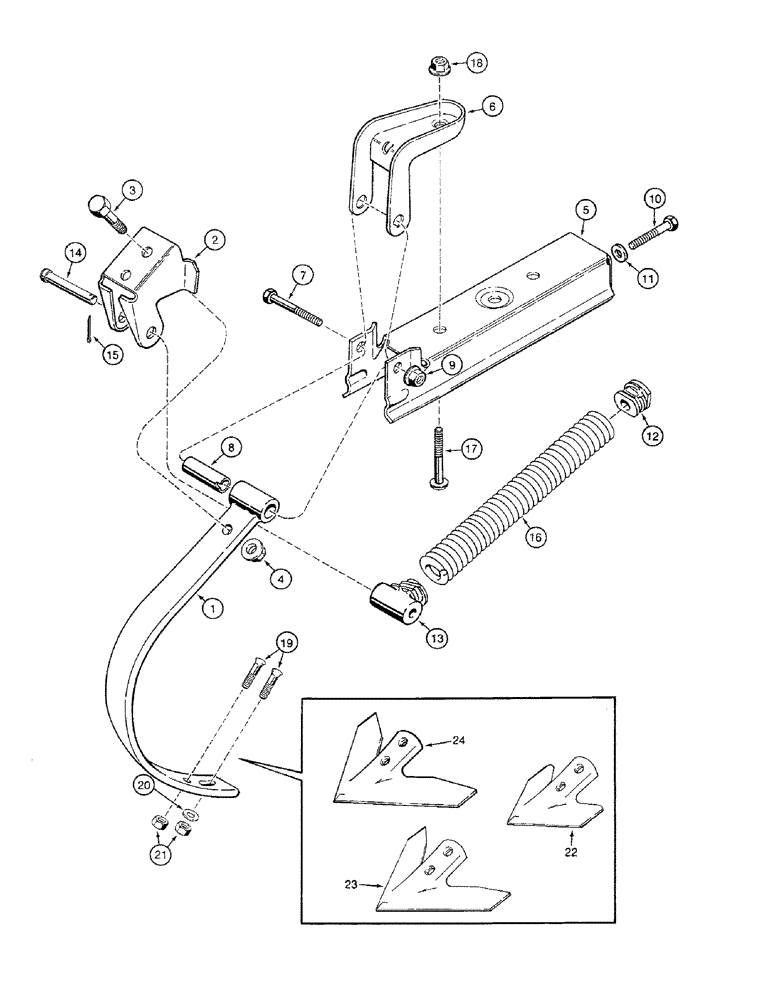

Запчасти Case IH 4200 (09-20) - VIBRA SHANKS AND GROUND WORKING TOOLS (09) - CHASSIS/ATTACHMENTS

1

813293C1

SHANK

- ground working tool, 1-1/4 x 2 x 26 inch, regular

1шт.

clearance

1шт.

2

591542R1

BRACKET

CLAMP - shank, lower

1шт.

3

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

4

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC

1шт.

5

97572C2

BRACKET

- shank, replaces 97572C1 bracket

1шт.

NOTE:REF#5 VIBRA SHANKS IMPROVEMENTS. CHANGE MADE EFFECTIVE PIN JAG 0690151.SEE BULLETIN NTE SB 020 95.

1шт.

6

97573C2

BRACKET

CLAMP - shank, upper, replaces 97573C2 clamp

1шт.

7

811352C1

BOLT,1/2" - 13 x 3 1/2"

- hex, 1/2 NC x 3-1/2 inch, special

1шт.

8

811354C1

BUSHING

-, Serial Range: shank-bracket

1шт.

9

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC

1шт.

10

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

11

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

12

591547R1

PLUG

- spring, front

1шт.

13

591544R1

PLUG

- spring, rear

1шт.

14

591545R1

PIN,13.08mm OD x 61.98mm L

- rear plug

1шт.

15

432-1216

COTTER PIN,3/16" x 1"

1шт.

16

591546R1

SPRING

- shank return

1шт.

17

811340C3

BOLT,1/2" - 13 x 5 1/2"

- upper clamp mounting

1шт.

18

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC

1шт.

19

21148R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/8", Gr 2

BOLT - plow, special, two bolts required to attach each ground working tool

1шт.

20

495-81010

WASHER,.469" x 1 1/4" x .060"

- flat, 15/32 x 1-1/4 x 1/16 inch, one washer required on lower bolt for each ground working tool

1шт.

21

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC, Two nuts required for each ground working tool

1шт.

22

1980641C2

TIP

SWEEP - 7-1/2 inch wide, if used

1шт.

23

1980642C2

TIP

SWEEP - 9 inch wide, if used

1шт.

23

1980643C2

TOOTH

SWEEP - 10-1/2 inch wide, if used

1шт.
