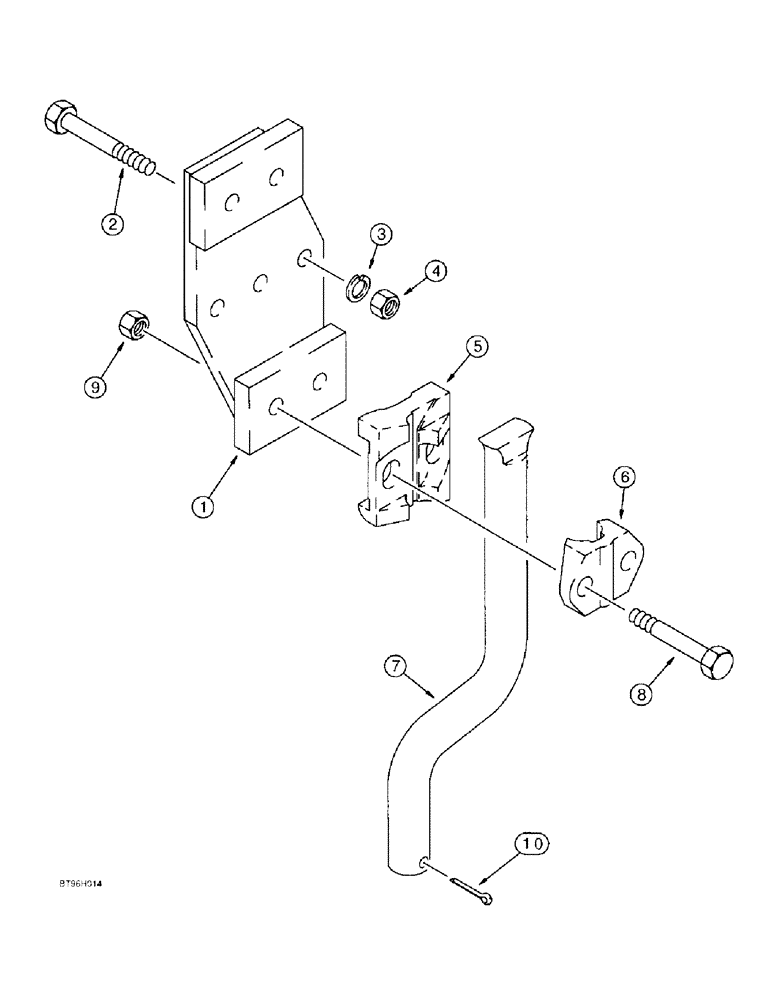

Запчасти Case IH 145 (09-07) - REAR BEAM COULTER SHANKS AND CLAMPS, AUTOMATIC TRIP BEAM PLOW (09) - CHASSIS/ATTACHMENTS

1

122895C1

PLATE

- coulter mounting

1шт.

2

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch

3шт.

3

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

4

425-1010

NUT,5/8"-11, G5

3шт.

5

524456R3

CLAMP

- coulter

2шт.

6

524492R1

CLAMP

CAP - coulter clamp, one shank

2шт.

7

488792R1

SHANK

- coulter

2шт.

8

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

9

425-1010

NUT,5/8"-11, G5

4шт.

10

432-2036

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), 5/16" x 2 1/4"

2шт.
