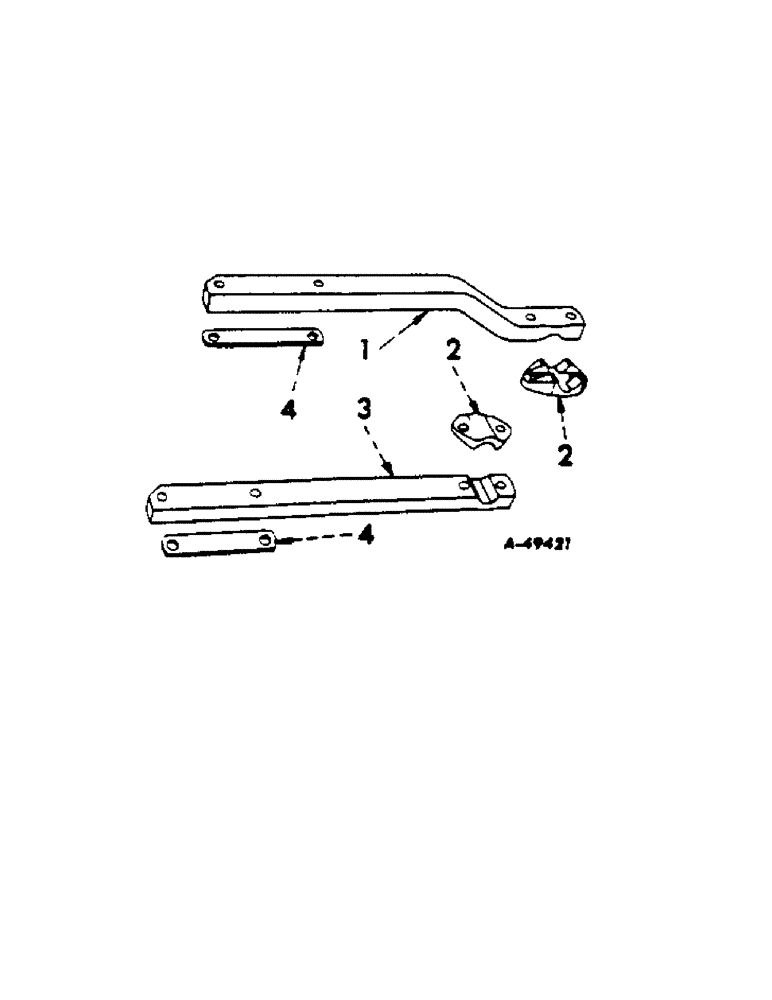

Запчасти Case IH 210 (N-04) - COLTER SHANK SUPPORT BAR, ONE PER FURROW

1

524342R1

BAR, colter support, for left bottom

1шт.

5/8 x 3-1/4 CAP SCREW

2шт.

5/8 LOCK WASHER

2шт.

5/8 NUT

2шт.

2

519155R1

CLAMP

CAP, colter support bar

2шт.

5/8 NUT

4шт.

5/8 x 3-1/2 CAP SCREW

4шт.

5/8 NUT

4шт.

3

524343R1

BAR, colter support, for right bottom

1шт.

5/8 x 3-1/4 CAP SCREW

2шт.

5/8 LOCK WASHER

2шт.

5/8 NUT

1шт.

4

524341R1

SPACER, colter support bar

2шт.
