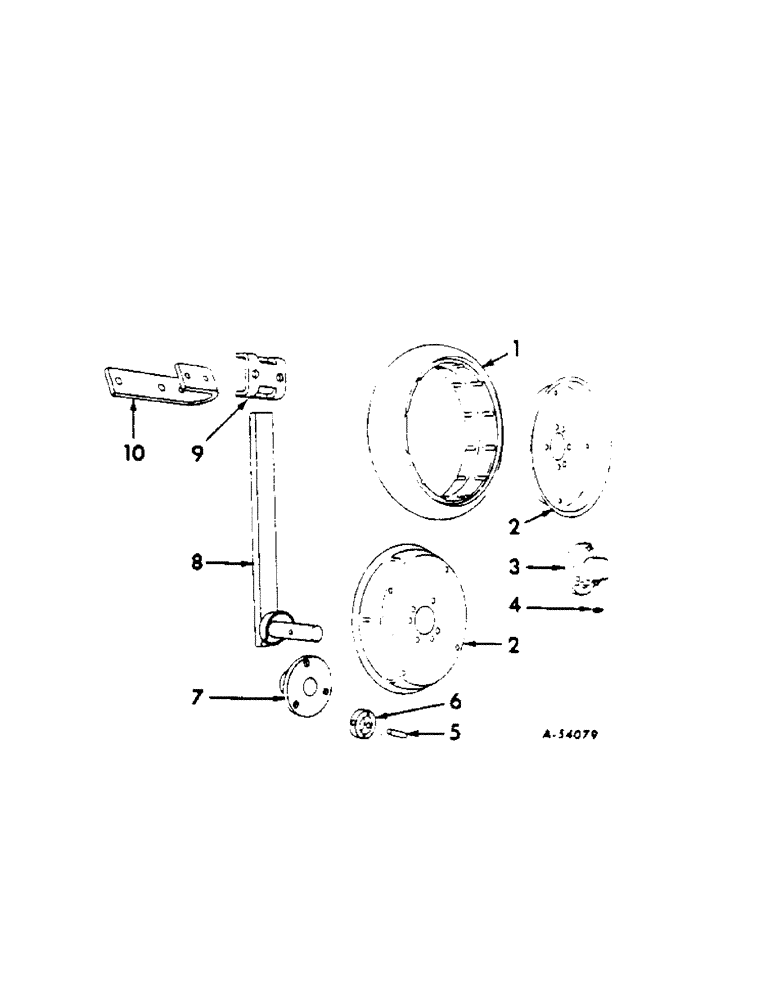

Запчасти Case IH 215 (R-06[A]) - GAUGE WHEEL WITH ZERO-PRESSURE TIRE

1

TIRE, zero-pressure, available only in pairs, machine attachment, 4.00 x 16

1шт.

2

526165R1

DISK, wheel

2шт.

3/8 x 3/4 C-Z HEX-HD MACH BOLT

4шт.

3/8 C-Z NUT

4шт.

3/8 C-Z LOCK WASHER

4шт.

3

PO2773

BOX, outside

1шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

5

PO25932

PIN, thrust collar

1шт.

6

PO2933

COLLAR, thrust

1шт.

7

PO2774

BOX, inside

1шт.

1/2 x 2-1/4 CRG BOLT

3шт.

1/2 LOCK WASHER

3шт.

1/2 NUT

3шт.

8

526163R11

STANDARD, wheel

1шт.

9

526227R11

CLAMP, standard

1шт.

5/8 x 2-1/2 HEX-HD MACH BOLT

2шт.

5/8 LOCK WASHER

2шт.

10

526167R1

SUPPORT, wheel

1шт.
