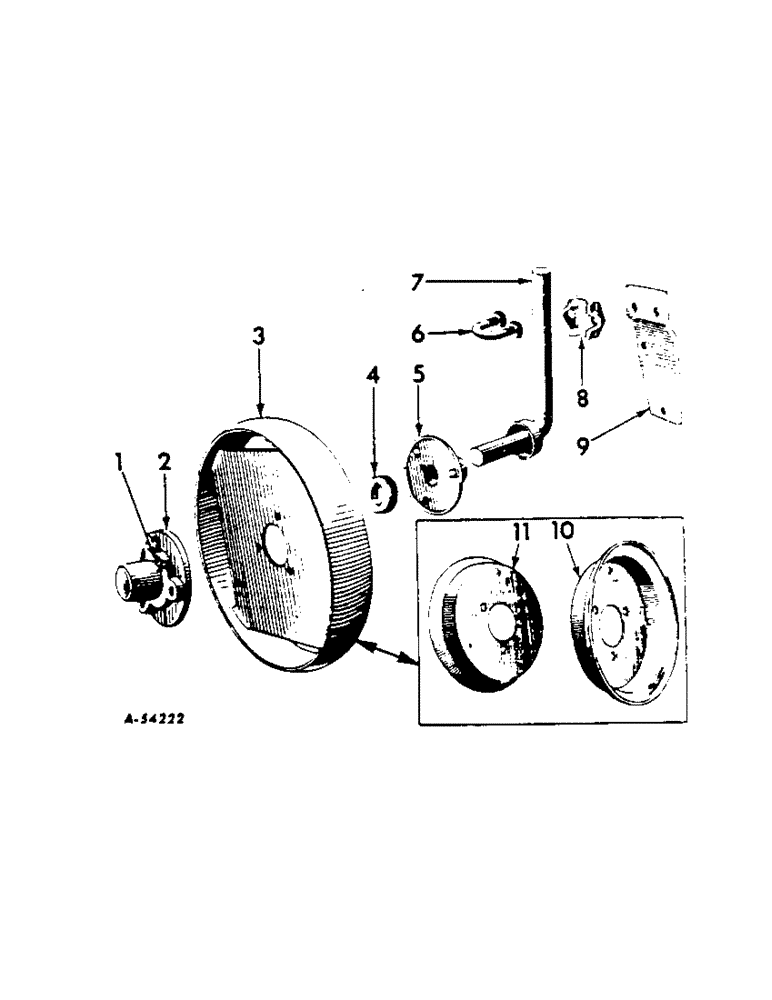

Запчасти Case IH 295 (S-07[A]) - GAUGE WHEELS

1

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

2

PO2773

BOX, wheel outside

1шт.

3

PO24429A

WHEEL, steel tire

1шт.

4

PO2933

COLLAR, thrust

1шт.

PO25932

5/16 x 2-5/16 HDLS PIN

1шт.

5

PO2774

BOX, wheel inside

1шт.

1/2 x 2-1/4 CRG BOLT

3шт.

1/2 LOCK WASHER

3шт.

6

PO24435X

U-BOLTS W/NUTS

1шт.

5/8 NUT

2шт.

7

PO24371

AXLE

1шт.

8

PO2787

CLAMP

1шт.

9

513572R1

BRACKET

1шт.

5/8 x 3-1/2 MACH BOLT

1шт.

5/8 x 4-1/4 MACH BOLT

1шт.

5/8 LOCK WASHER

1шт.

5/8 x 2-3/4 MACH BOLT

2шт.

10

B32992

DISK, with valve hole

1шт.

11

B32968

DISK, less valve hole

1шт.

3/8 x 3/4 MACH BOLT

3шт.

3/8 LOCK WASHER

3шт.
