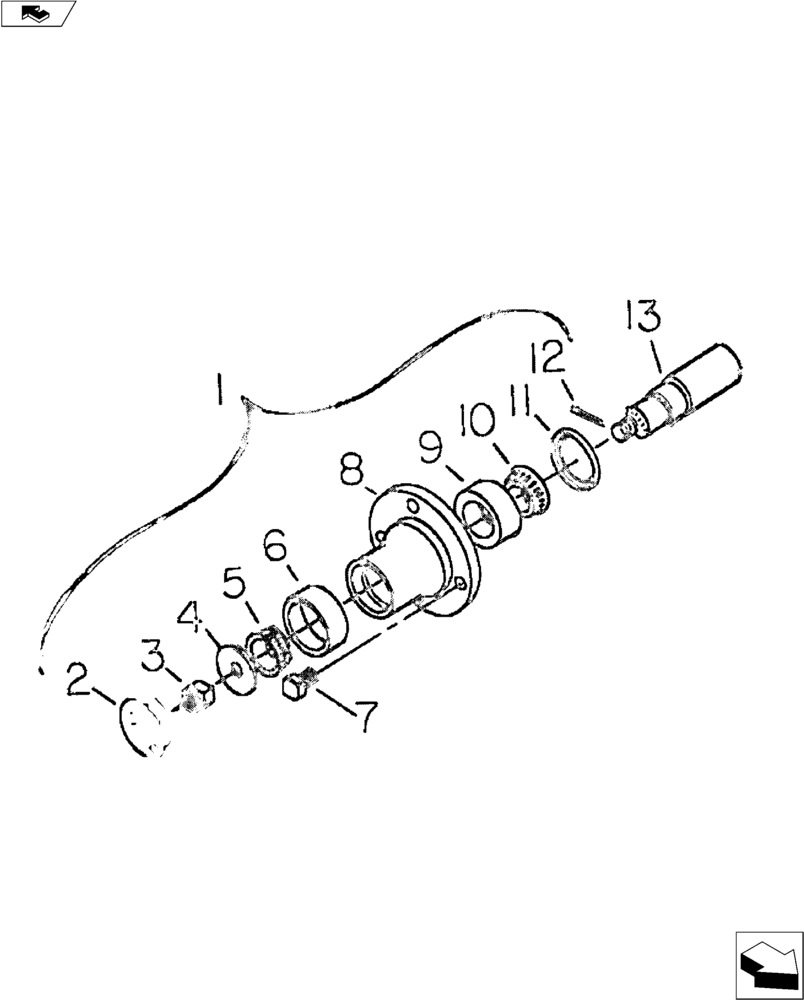

Запчасти Case IH 30 SERIES (44.100.03) - Q-669 & Q-633 HUB & SPINDLE (44) - WHEELS

1

28166900

1шт.

1

28163300

HUB ASSY.

(Used On Earlier Models)

1шт.

2

28463300

HUB CAP

1шт.

3

NSS

NOT SOLD SEPARAT

5/8" NF Slotted Nut

1шт.

3

NSS

NOT SOLD SEPARAT

3/4" NF Slotted Nut

1шт.

4

NSS

NOT SOLD SEPARAT

5/8" SAE Washer

1шт.

4

NSS

NOT SOLD SEPARAT

3/4" SAE Washer (Used On Earlier Models)

1шт.

5

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

0.75 Bore Timken LM11949

1шт.

5

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

6

651814R1

BEARING CUP

1.78 OD Timken LM11910

1шт.

7

16408052

SPECIAL BOLT

1/2" x 1-1/4" NF Lug

4шт.

8

28266900

1шт.

8

28263300

HUB

(Used On Earlier Models)

1шт.

9

651817R1

BEARING CUP

2.33 OD Timken LM67010

1шт.

9

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

10

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25 Bore Timken LM67048

1шт.

11

126621C1

SEAL

1.50 ID x 2.33 OD x 0.41 CR 509122

1шт.

12

NSS

NOT SOLD SEPARAT

5/32" x 1-1/2" Cotter Pin

1шт.

13

28366901

(Q669 Hub)

1шт.

13

28363311

AXLE

Spindle only (Q633 Hub)

1шт.
