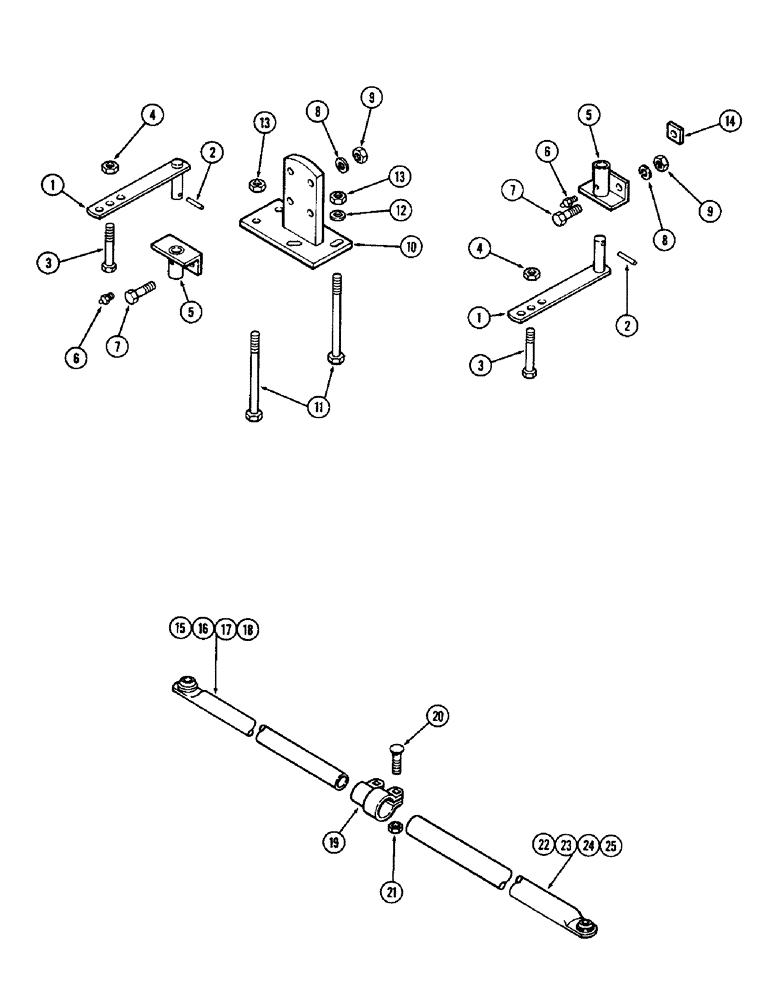

Запчасти Case IH 308 (08) - STEERING PIPES AND PIVOT

1

T54132

LEVER - (308-15, 308-16, 308-25, 308-26, 308-33, 308-34, 308-35, 308-36)

1шт.

2

138-159

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

3

114-644

BOLT,Hex, 5/8" - 18 x 5", Gr 5

- 5/8 x 5" NF hex (Grade 5)

1шт.

4

131-689

LOCK NUT,5/8"-11, GB

NUT - lock 5/8" NF hex

1шт.

5

T54131

LEVER - pivot (308-15, 308-16, 308-25, 308-26, 308-33, 308-34, 308-35, 308-36)

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

7

114-601

BOLT

BOLT - 5/8 x 2-1/2" NF hex (Grade 5)

2шт.

8

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

9

129-127

NUT,5/8"-18, G5

2шт.

10

T54134

BRACKET

- pivot (Five and six bottom shear bolt and cushion trip only)

1шт.

11

114-649

BOLT,Hex, 5/8" - 18 x 8-1/4", Gr 8

- 5/8 x 8-1/4" NF hex (Grade 8)

4шт.

12

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

2шт.

13

131-1250

NUT - lock 5/8" NF hex

4шт.

14

T54133

BLOCK - spacer, (308-15, 308-16, 308-25, 308-26, 308-33, 308-34, 308-35, 308-36)

1шт.

15

T54137

PIPE - steering internal (72-1/2") (308-15, 308-16, 308-25, 308-26, 308-33, 308-35, 308-36)

1шт.

15

T54137

PIPE - steering internal (72-1/2") (308-34)

2шт.

16

T54129

PIPE - steering internal (98-1/2") (308-15, 308-16, 308-23, 308-25, 308-26, 308-35, 308-36)

1шт.

17

T54112

PIPE - steering internal (110-1/2") (308-14, 308-24) 110.5" L

1шт.

18

T56461

PIPE - steering internal (48-1/2") (308-33)

2шт.

19

T54113

CLAMP - pipe (308-14, 308-23, 308-24)

1шт.

20

111-628

BOLT - 5/8 x 3" NC carriage (Grade 5)

2шт.

21

129-107

NUT,5/8"-11, G5

2шт.

19

T54113

CLAMP - pipe (308-15, 308-16, 308-25, 308-26, 308-33, 308-34 308-35, 308-36)

2шт.

20

111-628

BOLT - 5/8 x 3" NC carriage (Grade 5)

4шт.

21

129-107

NUT,5/8"-11, G5

4шт.

22

T55655

PIPE - steering external (48-1/2") (308-15, 308-16, 308-25, 308-26, 308-33, 308-34, 308-35, 308-36) 48.5" L

1шт.

22

T55655

PIPE - steering external (48-1/2") (308-33) 48.5" L

2шт.

23

T54136

PIPE - steering external (74-1/2") (308-34)

1шт.

24

T54130

PIPE - steering external (104-1/2") (308-15, 308-16, 308-23, 308-25, 308-26, 308-35, 308-36)

1шт.

25

T54111

PIPE - steering external (140-1/2") (308-14, 308-24) 140.5" L

1шт.
