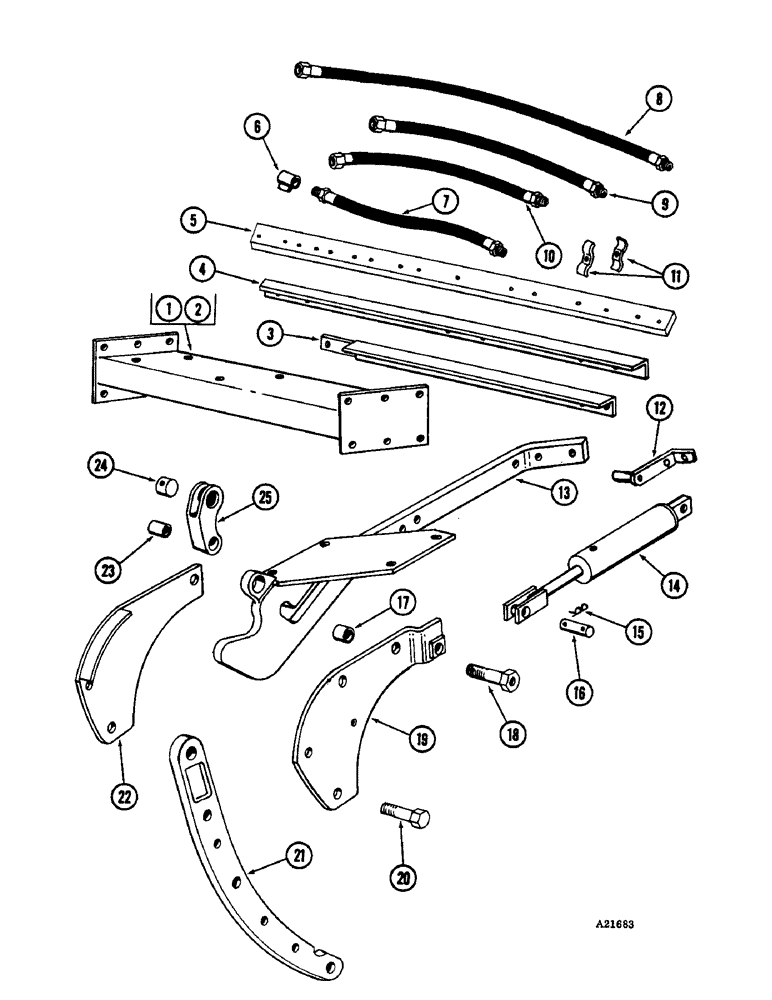

Запчасти Case IH 3300-SERIES (40) - BOTTOM ATTACHMENT, TO EXPAND 6 BOTTOM TO 7 BOTTOM, OR 6 BOTTOM TO 8 BOTTOM, 7 AND 8 BOTTOM

21

T24256

STANDARD (YR. - 69-) (7 Btm.)

1шт.

21

T24256

STANDARD (YR. - 69-) (8 Btm.)

2шт.

22

T38317

PLATE - beam, L.H. (YR. - 69-) (7 Btm.)

1шт.

22

T38317

PLATE - beam, L.H. (YR. - 69-) (8 Btm.)

2шт.

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (7 Btm.) 90º, 1/8" NPT x .84" lg

1шт.

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (8 Btm.) 90º, 1/8" NPT x .84" lg

2шт.

23

T38293

BUSHING - pivot, lower (YR. - 69-) (7 Btm.)

1шт.

23

T38293

BUSHING - pivot, lower (YR. - 69-) (8 Btm.)

2шт.

113-674

BOLT - 5/8" x 3-1/4" N.C. hex w/1" thread (7 Btm.)

1шт.

113-674

BOLT - 5/8" x 3-1/4" N.C. hex w/1" thread (8 Btm.)

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (7 Btm.) 5/8"

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (8 Btm.) 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

(7 Btm.) 5/8"-11, G5

1шт.

25-1010

NUT,5/8"-11, G5

(8 Btm.) 5/8"-11, G5

2шт.

24

T38312

PIN

- pivot, upper (YR. - 69-) (7 Btm.)

1шт.

24

T38312

PIN

- pivot, upper (YR. - 69-) (8 Btm.)

2шт.

138-155

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, (7 Btm.) 5/16" x 1 1/4", Slotted

1шт.

138-155

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, (8 Btm.) 5/16" x 1 1/4", Slotted

2шт.

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, (7 Btm.) 3/16" x 1 1/4", Slotted

1шт.

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, (8 Btm.) 3/16" x 1 1/4", Slotted

2шт.

25

T38290

LINK - rear (YR. - 69-) (7 Btm.)

1шт.

T38290

LINK - rear (YR. - 69-) (8 Btm.)

2шт.
