(28) - STEERING PIPES AND PIVOT

Запчасти Case IH 400-SERIES (28) - STEERING PIPES AND PIVOT

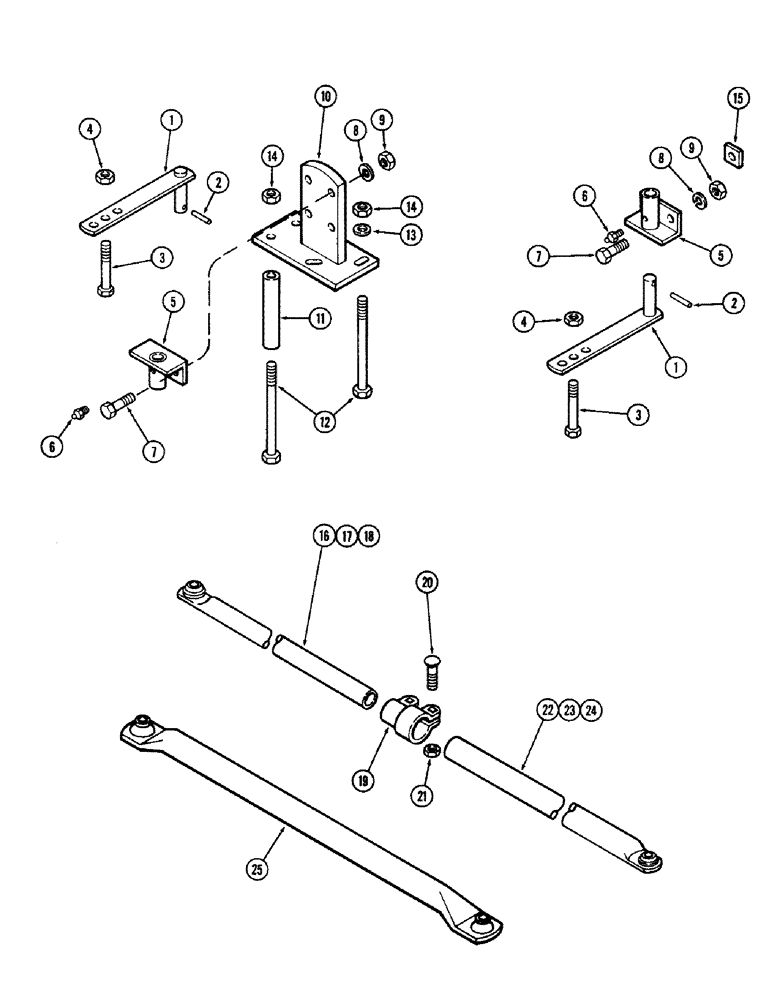

Схема запчастей Case IH 400-SERIES - (28) - STEERING PIPES AND PIVOT
22
8
12
18
3
14
2
9
7
4
21
5
5
7
6
17
13
25
10
1
8
6
3
14
20
2
15
9
11
24
19
23
16
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

T54132

LEVER

1шт.

2

138-159

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

3

114-644

BOLT,Hex, 5/8" - 18 x 5", Gr 5

- 5/8 x 5" NF hex (Grade 5)

1шт.

4

131-689

LOCK NUT,5/8"-11, GB

NUT - lock 5/8" NF hex

1шт.

5

T54131

PIVOT - lever

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

7

114-601

BOLT

BOLT - 5/8 x 2-1/2" NF hex (Grade 5)

2шт.

8

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

9

129-127

NUT,5/8"-18, G5

2шт.

10

T54134

BRACKET

- pivot (Shear bolt and cushion trip only)

1шт.

11

T54135

SPACER - (Shear bolt and cushion trip only)

1шт.

12

116-602

BOLT,Hex, 5/8" - 18 x 10-1/4", Gr 8

- 5/8 x 10-1/4" NF hex (Grade 8)

4шт.

13

195-541

WASHER,5/8", SAE

- 1-5/16 x 21/32 x 1/8"

2шт.

14

131-1250

NUT - lock 5/8 NF hex

4шт.

15

T54133

BLOCK - spacer

1шт.

16

T54112

PIPE - steering internal (110-1/2") (500-15, 500-16, 500-17, 500- 25, 500-26, 500-27, 500-35, 500-36, 500-37) 110.5" L

1шт.

17

T54129

PIPE - steering internal (98-1/2") (400-15, 400-16, 400-17, 400- 18, 400-25, 400-26, 400-27, 400-28, 400-35, 400-36, 400-37, 400- 38)

1шт.

18

T54137

PIPE - steering internal (72-1/2") (400-15, 400-16, 400-17, 400- 18, 400-25, 400-26, 400-27, 400-28, 400-35, 400-36, 400-37, 400- 38, 500-15, 500-16, 500-17, 500-25, 500-26, 500-27, 500-35, 500- 36, 500-37)

1шт.

18

T54137

PIPE - steering internal (72-1/2") (500-14, 500-24, 500-34)

2шт.

19

T54113

CLAMP - pipe

2шт.

20

111-628

BOLT - 5/8 x 3" NC carriage (Grade 5)

4шт.

21

129-107

NUT,5/8"-11, G5

4шт.

22

T54130

PIPE - steering external (104-1/2") (400-15, 400-16, 400-17, 400- 18, 400-25, 400-26, 400-27, 400-28, 400-35, 400-36, 400-37, 400- 38)

1шт.

23

T54136

PIPE - steering external (74-1/2") (400-15, 400-16, 400-17, 400- 18, 400-25, 400-26, 400-27, 400-28, 400-35, 400-36, 400-37, 400- 38, 500-15, 500-16, 500-17, 500-25, 500-26, 500-27, 500-35, 500- 36, 500-37)

1шт.

23

T54136

PIPE - steering external (74-1/2") (500-14, 500-24, 500-34)

2шт.

24

T54424

PIPE - steering external (114") (500-15, 500-16, 500-17, 500-25, 500-26, 500-27, 500-35, 500-36, 500-37)

1шт.

25

T54511

PIPE - steering (112-1/2") (On land 400 series, 500 series five, six and seven bottom) 112.5" L

1шт.
