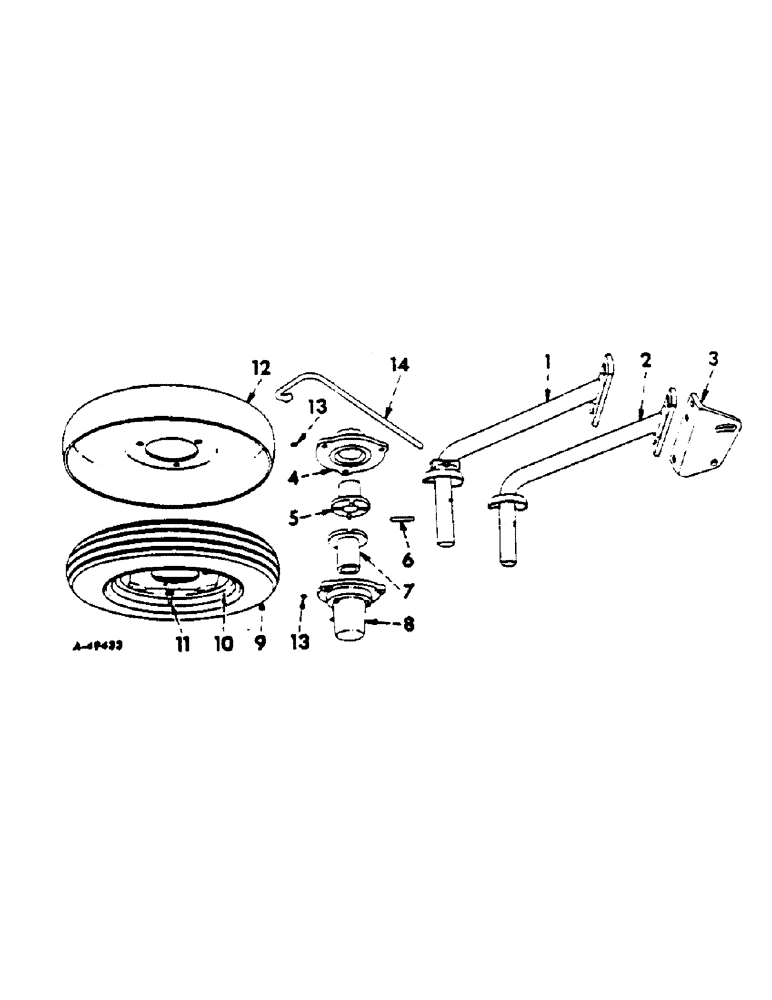

Запчасти Case IH 411 (V-14) - REAR FURROW WHEELS, RIGID BEAM, 1958 TO 1960

1

524504R92

AXLE, steel wheel

1шт.

2

524505R92

AXLE, pneumatic wheel

1шт.

524899R1

5/8 x 1-3/4 CRG BOLT

2шт.

524900R1

5/8 x 2 CRG BOLT

2шт.

3/8 x 3/4 CUP-PT SQ-HD SET SCREW

2шт.

5/8 LOCK WASHER

4шт.

21/32 x 1-1/4 x 11 GA WASHER

2шт.

3

524501R1

BRACKET, attaching

1шт.

5/8 NUT

2шт.

114507

JAM NUT,Jam, 5/8"-11, G5

1шт.

5/8 x 3-3/4 CAP SCREW

1шт.

NLS

NO LONGER SERVICED

5/8 x 3 OV-PT SQ-HD SET SCREW

1шт.

5/8 LOCK WASHER

2шт.

21/32 x 1-1/4 x 11 GA WASHER

1шт.

4

521165R1

BOX, inside

1шт.

5

521155R1

BEARING

inside

1шт.

6

521383R1

PIN, wheel box lock

1шт.

7

521156R1

BEARING, outside

1шт.

8

521166R2

BOX, outside

1шт.

1/2 x 2 MACH BOLT

3шт.

1/2 LOCK WASHER

3шт.

9

TIRE, 4 ply ribbed implement pneumatic, 4.00 x 12

1шт.

10

518784R91

WHEEL, pneumatic

1шт.

11

TUBE, pneumatic, 4.00 x 12

1шт.

12

522995R1

WHEEL, pan

1шт.

13

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive lub

1шт.

14

523009R1

SCRAPER

1шт.
