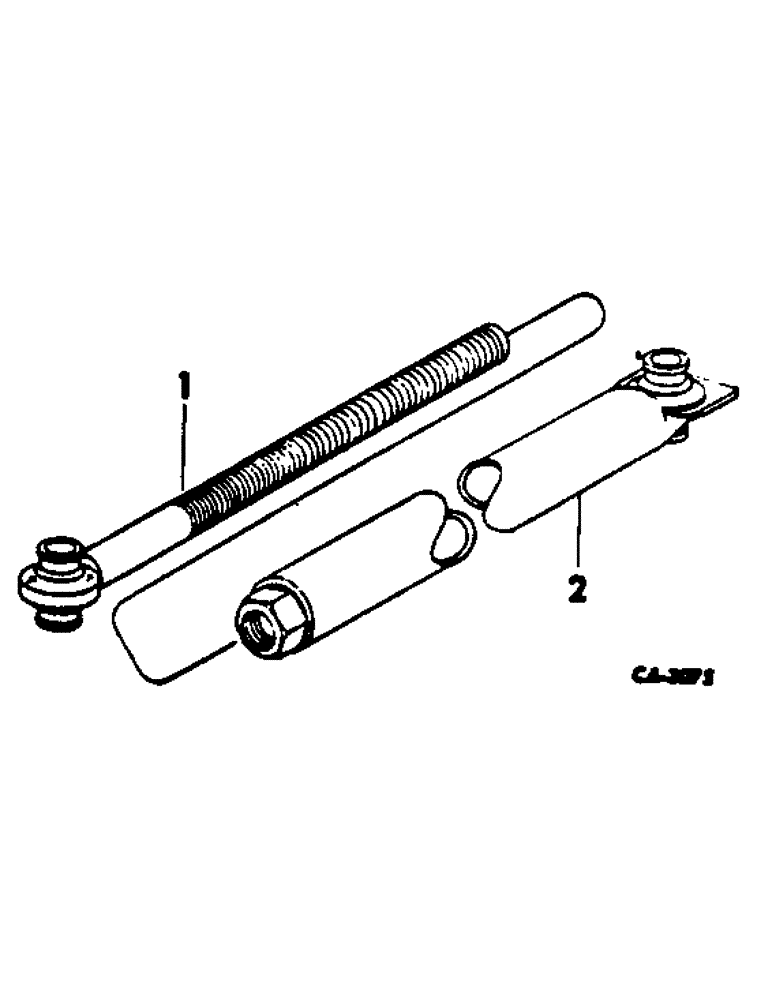

Запчасти Case IH 510 (AS-04) - STEERING LINKAGE

1

489858R2

LINK ASSY.

LINK ASSY, front adj

1шт.

516773R1

NUT

1-8 hex. jam

1шт.

2

56595C1

TUBE ASSY, steering, for unit A

1шт.

2

56597C1

TUBE ASSY, steering, for units B and C

1шт.

2

56599C1

TUBE ASSY, steering, for unit D

1шт.

2

56601C1

TUBE ASSY, steering, for units E and F

1шт.

2

56603C1

TUBE ASSY, steering, for unit G

1шт.

2

56605C1

TUBE ASSY, steering, for unit H

1шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4-10 x 4 znd hex-hd cap , Course threads

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 znd hex-hd cap

1шт.

21621R1

LOCK NUT,3/4"-10

NUT, 3/4-10 znp nylon insert

2шт.
