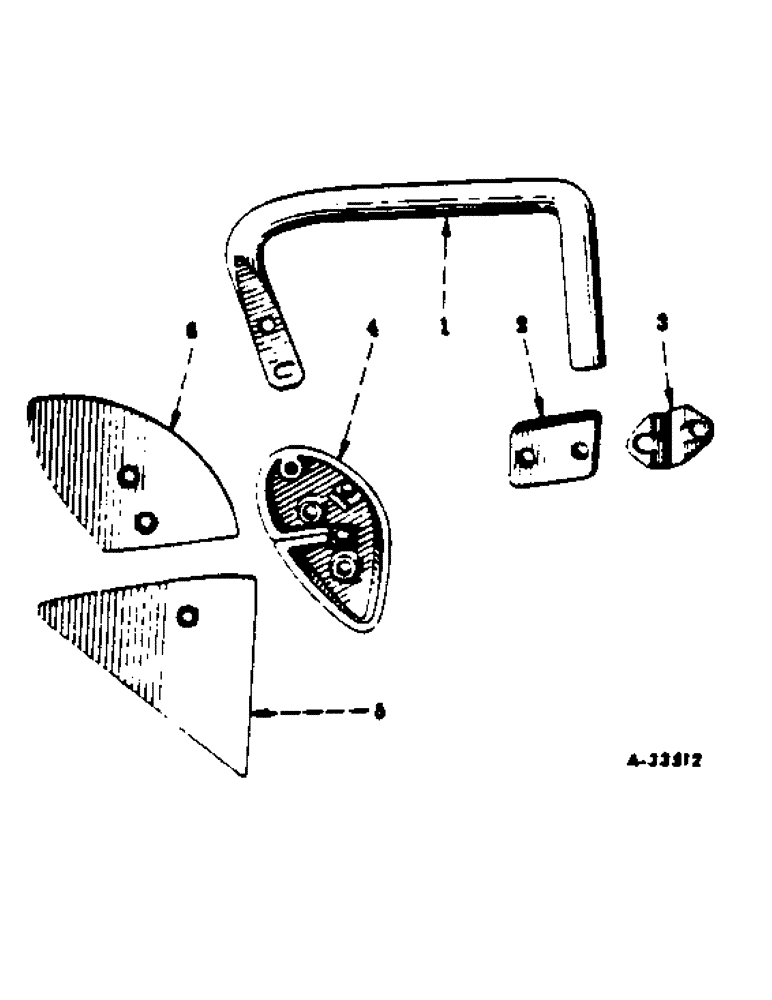

Запчасти Case IH 511 (W-07) - JOINTER, TWO PIECE BLADE, ONE PER FURROW

1

519344R1

SHANK

1шт.

3/8 x 1-1/4 SQ-HD MACH BOLT

1шт.

3/8 x 1-1/2 SQ-HD MACH BOLT

1шт.

Q1505

WASHER

13/32 x 1 x 16 GA WASHER

1шт.

3/8 NUT

2шт.

2

519343R1

BLOCK, jointer

1шт.

3

519342R1

CAP, jointer adjusting

1шт.

1/2 x 2-3/4 CRG BOLT

2шт.

1/2 NUT

2шт.

4

PO2426

FROG

1шт.

5

PO2226

SHARE, chilled

1шт.

5

PO20092X

BLADE

SHARE W/BOLTS, steel

1шт.

15830R1

3/8 x 1-3/8 NO. 7 PLOW BOLT

2шт.

3/8 NUT

2шт.

6

PO1186

MOLDBOARD, chilled

1шт.

6

S7408X

MOLDBOARD W/BOLTS, steel

1шт.

15815R1

3/8 x 1-1/8 NO. 7 PLOW BOLT

4шт.

3/8 NUT

4шт.
