(AH-16) - VERTICAL HITCH LIMITER, TRACTORS WITH THREE POINT HITCH

Запчасти Case IH 535 (AH-16) - VERTICAL HITCH LIMITER, TRACTORS WITH THREE POINT HITCH

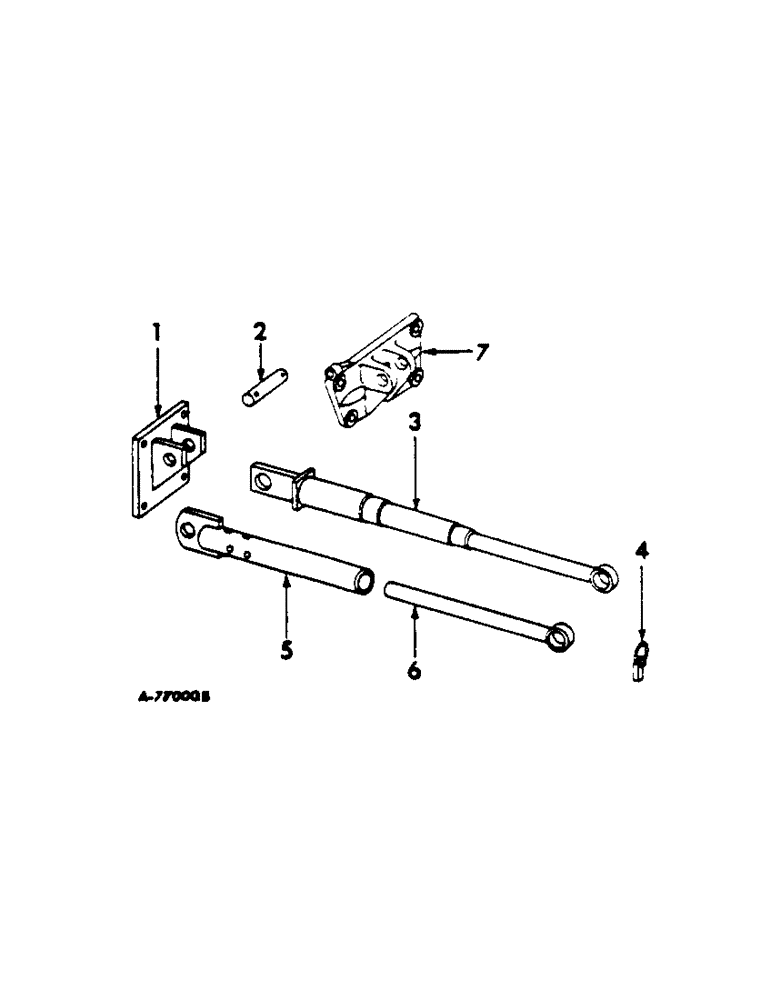

Схема запчастей Case IH 535 - (AH-16) - VERTICAL HITCH LIMITER, TRACTORS WITH THREE POINT HITCH
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

517758R91

SPLIT PIN/SAFETY PIN

PIN, restrictor

1шт.

2

473175R11

ROD ASSY, restrictor

1шт.

3

484867R1

TUBE ASSY, restrictor

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 hex-hd cap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

102637

NUT,1/2"-13, G5

1шт.
