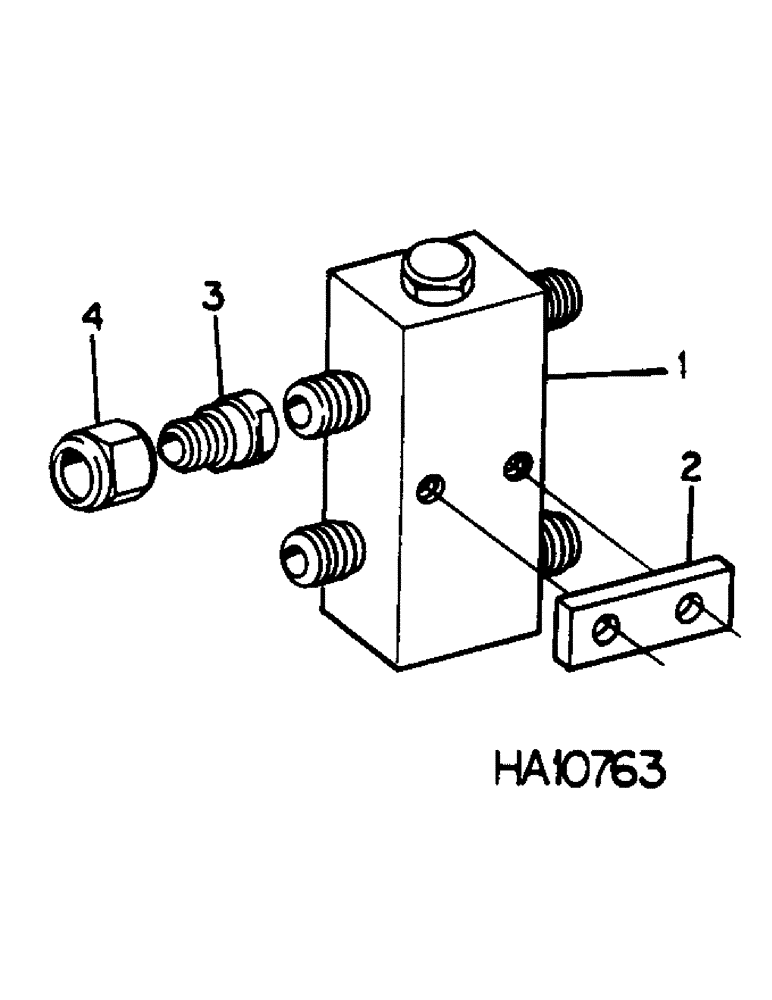

Запчасти Case IH 60 (A-20) - ALTERNATING CHECK VALVE, 15 FOOT, TRACTORS WITHOUT CHECK VALVE

1

142864C95

VALVE

ASSY, check

1шт.

2

810201C1

BAR

valve support

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 type 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

3

9403405

REDUCER,37 Degree, 5/8" x 3/8" Tube

FITTING, 3/4 x 1/2 C-Z hyd fld tube redr

4шт.

4

9403529

TUBE NUT,37 Degree, 7/8"-14, Type B

NUT, 5/8 C-Z hyd fld tube style B

4шт.

NOTE:REFER TO ITEMS 3 & 4,ANOTHER UNION WAS USED(NOT A SUB)PART 386624R1 11/15/96

1шт.
