403842R93

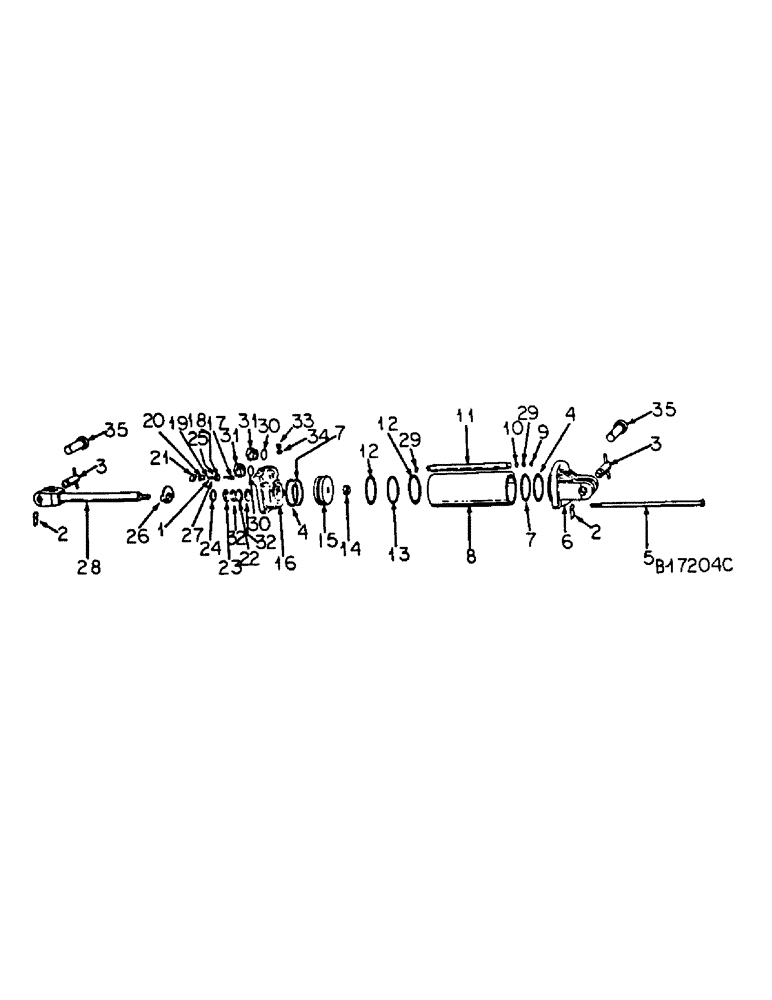

CYLINDER ASSY, 3.5 x 8 DA, IH, order 1263474C91, for tractors w/hyd systems rated up to 3000 PSI
1шт.
1
WASHER, o-ring back-up, see note (NSS)
1шт.
2
520175R1
CLIP
PIN, quick attachable cot.
2шт.
3
(Not used in this application)
1шт.
4
WASHER, head back-up, see note (NSS)
2шт.
5
404022R1
ROD,5/8" - 11 x 14"
tie
4шт.
25528R1
NUT,5/8"-11, G8
5/8 PHC type 8
8шт.
6
547662R1
HEAD
rear
1шт.
7
O-RING, 3-1/4 x 3-1/2 class 6, see note, front and rear head (NSS)
2шт.
8
404021R1
SLEEVE, cylinder
1шт.
9
WASHER, o-ring back-up, see note (NSS)
2шт.
10
O-RING, .984 x 1.262 x .139, see note, piston rod (NSS)
1шт.
11
404023R1
TUBE
cylinder return
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
12
WASHER, o-ring, back-up, see note (NSS)
2шт.
13
O-RING, 3.125 x 3.520 x .021, see note, piston (NSS)
1шт.
14
25126R1
LOCK NUT,1 1/8"-12, GC
NUT, 1-1/8-12 PHC hex lock
1шт.
15
404019R1
PISTON
1шт.
16
404014R1
HEAD
cylinder front
1шт.
17
404029R1
LOCK VALVE
VALVE ASSY, limit stop
1шт.
18
O-RING, 5/8 x 13/16 class 6, see note, limit stop valve housing (NSS)
1шт.
19
O-RING, 3/16 x 5/16 class 6, see note, limit stop valve housing (NSS)
1шт.
20
404024R91
HOUSING
ASSY, limit stop valve, includes 1-404026R1, washer, 1-21590R1, o-ring and 1-404027R1, washer
1шт.
21
361009R1
PLATE
limit stop valve retainer
1шт.
179792
BOLT,Hex, 1/4" - 20 x 9/16"
1/4 x 9/16 pln type 5
2шт.
22
119203C1
SEAL
SEAL, piston rod, used w/R94 cyl, replaces 400744R1 & 403622R1
1шт.
22
400744R1
RING
quad, used w/R93 cyl & R1 front head
1шт.
23
WIPER, piston rod, see note (NSS)
1шт.
24
383771R1
SEALING WASHER
RETAINER, piston rod wiper, used w/R93 cyl & R1 front head
1шт.
25
WASHER, limit stop valve housing o-ring, see note (NSS)
1шт.
26
404034R1
CLAMP
ASSY, stroke limit, includes 1-181595, bolt
1шт.
181595
BOLT,Hex, 5/16" - 24 x 3/4", Gr 5
5/16-NF x 3/4 type 5
1шт.
27
404027R1
RETAINER
limit stop valve o-ring
1шт.
28
547661R1
ROD
ASSY, piston
1шт.
29
O-RING, 9/16 x 3/4 class 6, see note, return tube (NSS)
2шт.
30
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
.625 x .755 x .097
2шт.
31
9410360
PLUG
7/8-14 str thd o-ring boss
2шт.
32
403622R1
BACK-UP RING
WASHER, quad ring back-up, used w/R93 cyl & R1 front head
2шт.
33
404033R1
PLUG
front head, see note
2шт.
34
O-RING, 15/32 x 5/8 x 5/64 (NSS)
2шт.
35
61571C1
PIN
cylinder pivot
2шт.
527324R92
KIT
PACKAGE, hyd cyl seal ring, consists of ref nos 1, 4, 7, 9, 10, 12, 13, 18, 19, 23, 25, 29, 34
1шт.
