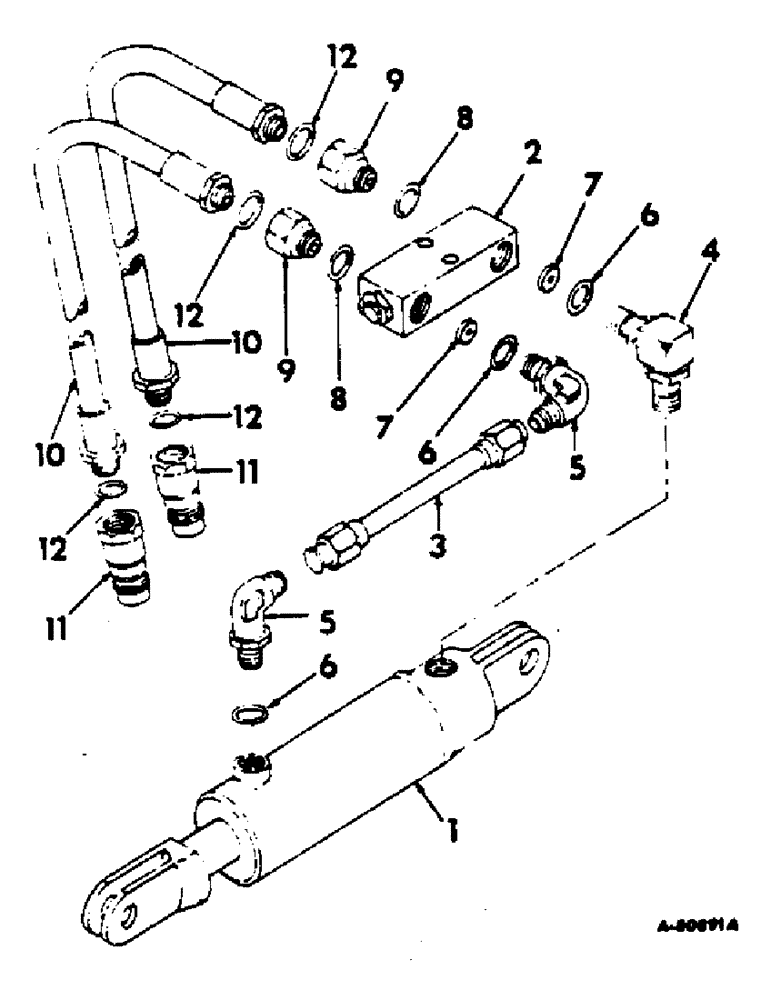

Запчасти Case IH 641 (AD-12) - HYDRAULIC UNIT, 1964

1

388688R91

CYLINDER ASSY, hydraulic, note A, for components see list of parts under details of hydraulic cylinder

1шт.

2

385558R94

VALVE

ASSY, double action check, for components see list of parts under details of double acting check valve

1шт.

3

479502R11

TUBE

PIPE ASSY, check valve

1шт.

4

196973C1

ELBOW

7/8-14 90 deg w/locking nuts & o-rings, replaces 476940R1

1шт.

5

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube adj str thrd 90 deg valve

2шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

5шт.

7

474138R1

WASHER, restrictor

2шт.

9

462869R1

UNION

ADAPTER, valve

2шт.

10

653411R91

HOSE ASSY, hydraulic, 36 in. long

2шт.

11

388990R91

COUPLING

COUPLER, self-sealing male

2шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 16/16 x 3/32

4шт.

8

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

2шт.
