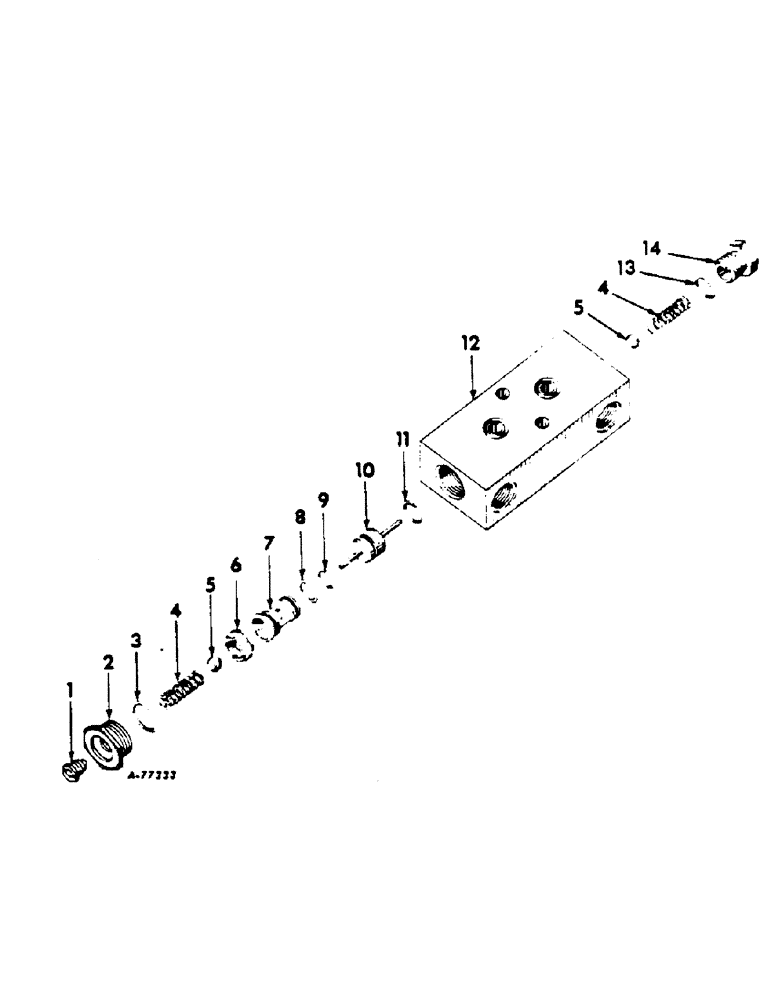

Запчасти Case IH 641 (AD-13) - DOUBLE ACTING CHECK VALVE

385558R94

VALVE

ASSY, double acting check

1шт.

1

385702R91

VALVE

ASSY, thermal relief

1шт.

2

377594R1

PLUG

check valve relief

1шт.

3

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

for 3/4 OD tube

1шт.

4

372649R1

SPRING

check valve

2шт.

5

17016R1

BALL,1/2" Dia

2шт.

6

374172R1

NUT

check valve ball retainer

1шт.

7

374087R21

RETAINER

ASSY, check valve ball

1шт.

8

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk

1шт.

9

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

11/16 x 13/16 x 1/16

1шт.

10

374085R11

PISTON

ASSY, check valve actuator

1шт.

11

6062714C1

O-RING, 5/8 x 13/16 x 3/32

1шт.

12

BLOCK, check valve, not serviced separately

1шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

14

374089R1

PLUG

check valve small

1шт.
