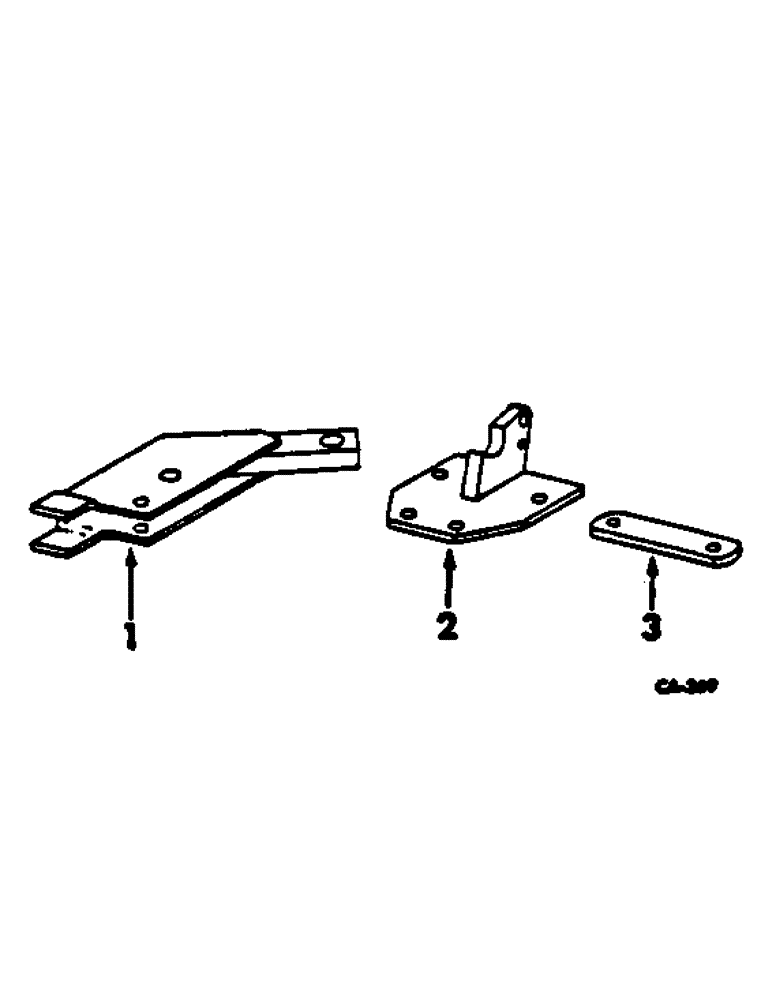

Запчасти Case IH 700 (AK-40) - 16 IN. HYD LIFT CYL ATTACHMENT

1

540523R1

ARM ASSY, cyl

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 znd hex-hd cap

1шт.

22694R1

WASHER, 3/4 cdp med lock

1шт.

280954

NUT,3/4"-10, G5

1шт.

271859

VALVE,Hex, 1" - 8 x 3", Gr 5

SCREW, 1-8 x 3 znd hex-hd cap

1шт.

22696R1

WASHER, 1 CDP med lock

1шт.

9849633

NUT,1"-8, G5

1шт.

2

540527R1

ANCHOR ASSY, rear

1шт.

21400R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

SCREW, 3/4-10 x 7-1/2 znd hex-hd cap

4шт.

22694R1

WASHER, 3/4 CDP med lock

4шт.

280954

NUT,3/4"-10, G5

4шт.

3

540530R1

CLIP, anchor

1шт.
