(08-06) - HYDRAULIC SYSTEM, ON THE LAND PLOWS, P.I.N. JAG0303580 AND AFTER

Запчасти Case IH 7500 (08-06) - HYDRAULIC SYSTEM, ON THE LAND PLOWS, P.I.N. JAG0303580 AND AFTER (08) - HYDRAULICS

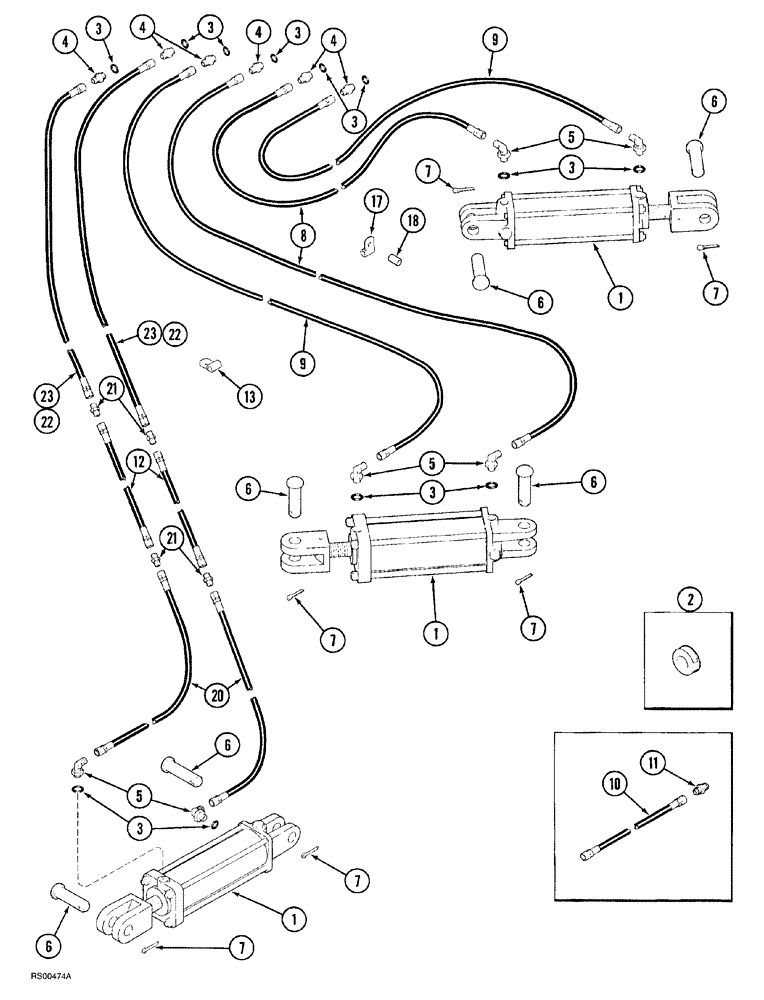

Схема запчастей Case IH 7500 - (08-06) - HYDRAULIC SYSTEM, ON THE LAND PLOWS, P.I.N. JAG0303580 AND AFTER (08) - HYDRAULICS
3
18
23
3
11
3
10
6
13
6
5
9
6
4
9
20
7
5
3
6
4
22
12
7
5
17
6
3
3
6
3
1
22
1
4
1
7
21
7
2
23
4
8
21
7
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87427819

CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

ASSEMBLY, hydraulic, 3 x 8 inch (See Fig. 08-07)

3шт.

2

7737869

COLLAR

KIT stroke control

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

13шт.

4

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

Straight, 3/8-37FL x ORB 1/2

6шт.

236878A1

GRIP

Package, Hydra Grip, Red

1шт.

236879A1

GRIP

Package, Hydra Grip, Black

1шт.

236880A1

GRIP

Package, Hydra Grip, Gray

1шт.

1285718C1

COUPLING

Self-Seal, Male 3/8 inch

6шт.

5

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

90 degree, 3/8-37FL x ORB 1/2

6шт.

6

810751C1

PIN

1 x 3-1/2 inch

6шт.

7

432-1624

COTTER PIN,1/4" x 1 1/2"

6шт.

8

1284257C1

HYDRAULIC HOSE,9.53mm ID x 5335mm L

3/8 x 5334 mm (210 inch) long

2шт.

9

1284258C1

HYDRAULIC HOSE,9.53mm ID x 5715mm L

3/8 x 5715 mm (225 inch) long

2шт.

10

129672C2

HYDRAULIC HOSE

3/8 x 991 mm (39 inch) long

1шт.

Used on plows equipped with frame extension

1шт.

11

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR straight, 3/8 x 3/8-37FL

1шт.

Used on plows equipped with frame extension

1шт.

12

129782C2

HYDRAULIC HOSE

3/8 x 4191 mm (165 inch) long

2шт.

13

299615C1

CLAMP

P-type, 5/8 inch ID (1/2 inch bolt hole)

1шт.

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

425-108

NUT,1/2" - 13, Gr 5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

17

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

1шт.

411-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 2

3/8 NC x 1 GR2

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

18

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

3/8 ID x 1 inch

2шт.

20

129672C2

HYDRAULIC HOSE

3/8 x 991 mm (39 inch) long (used on 7/6 furrow plows)

2шт.

21

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR straight, 3/8 x 3/8-37FL (a quantity of 4 used on 7/6 furrow plows)

2шт.

22

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

3/8 x 4699mm (185 inch) long (used on 5 furrow plows)

2шт.

23

1268131C1

HOSE

SPARE PART 3/8 x 5842mm (230 inch) long (used on 6/7 furrow plows)

2шт.

87431719

SEAL KIT

O-ring and Seal Service

1шт.
