(068) - TSX SLAT BOTTOM LEFT HAND, PER BOTTOM 14 INCH AND 16 INCH

Запчасти Case IH CASE (068) - TSX SLAT BOTTOM LEFT HAND, PER BOTTOM 14 INCH AND 16 INCH

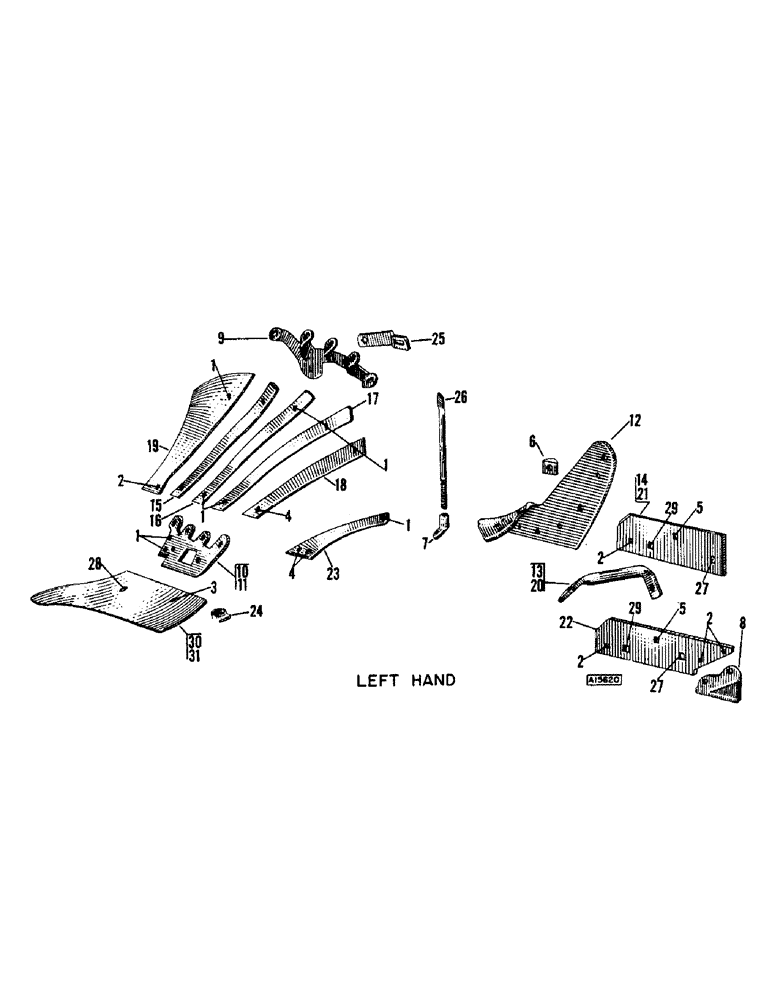

Схема запчастей Case IH CASE - (068) - TSX SLAT BOTTOM LEFT HAND, PER BOTTOM 14 INCH AND 16 INCH
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

2

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

3

T19474

BOLT - plow, 3/8" x 1-5/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

4

T19475

BOLT

- plow, 3/8" x 2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

5

T20469

BOLT

- plow, 1/2" x 2-3/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

6

1535

WASHER - spacer

2шт.

7

P25

NUT - round brace

2шт.

8

W2370

HEEL - long landside, L.H.

1шт.

9

W2404

BRACKET - slat, L.H.

2шт.

10

W2405

SPLICE PLATE (Per btm. 14")

2шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

4шт.

11

W2407

SPLICE PLATE (Per btm. 16")

2шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

4шт.

12

W6854S

FROG - L.H.

2шт.

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

- 1/2" x 2-1/2" hex

2шт.

14-856

BOLT,Hex, 1/2" - 20 x 3-1/2", Gr 5

- 1/2" x 3-1/2" hex

2шт.

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

4шт.

13

W6995S

BRACE - share, 1" rd. x 14-1/2" (Per btm. 14")

2шт.

14

W6996S

LANDSIDE - short, L.H., 4" x 1/2" x 14-1/4" (Per btm. 14")

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

1шт.

T19822

BOLT

- plow, 7/16" x 2" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

1шт.

T20469

BOLT

- plow, 1/2" x 2-3/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

1шт.

T27361

BOLT

- plow, 5/8" x 2-1/2" P#3 and nut (Per btm. 14")

1шт.

15

T60811

SLAT - #2, L.H.

2шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

4шт.

16

W7000S

SLAT - #3 L.H.

2шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

4шт.

17

W7001S

SLAT - #4 L.H.

2шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

4шт.

18

W7002S

SLAT - #5 L.H., 14" (Per btm. 14")

2шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

2шт.

T19475

BOLT

- plow, 3/8" x 2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

2шт.
