(072) - MSX 12 INCH, 14 INCH AND 16 INCH SLAT BOTTOM, PER BOTTOM 12 INCH, 14 INCH AND 16 INCH

Запчасти Case IH CASE (072) - MSX 12 INCH, 14 INCH AND 16 INCH SLAT BOTTOM, PER BOTTOM 12 INCH, 14 INCH AND 16 INCH

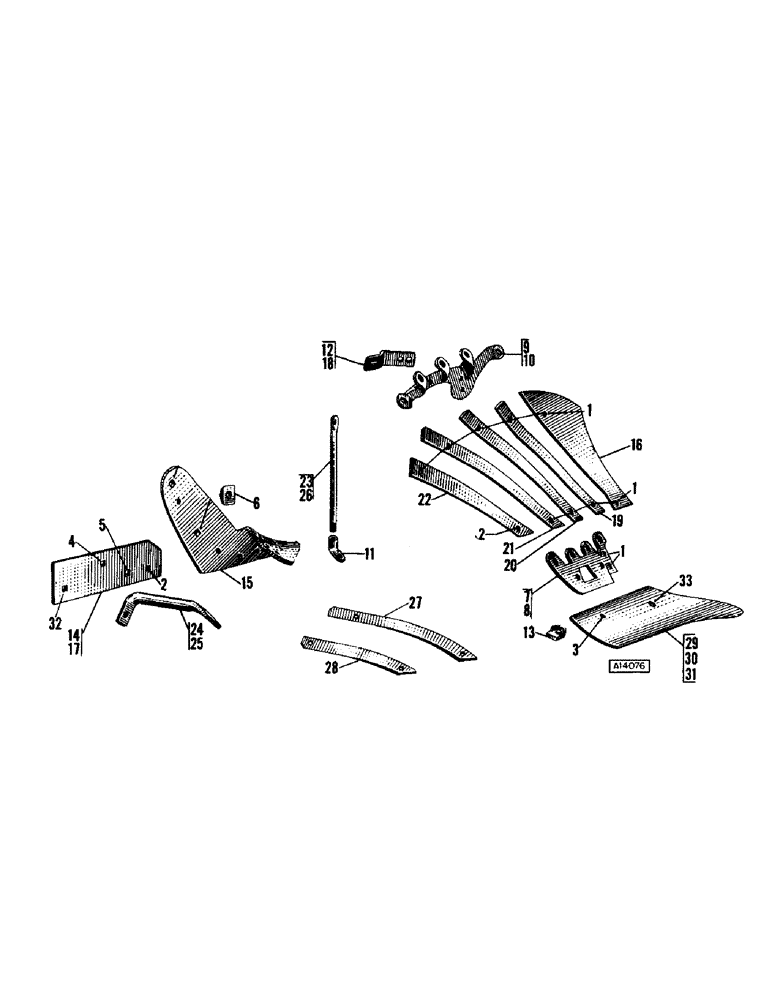

Схема запчастей Case IH CASE - (072) - MSX 12 INCH, 14 INCH AND 16 INCH SLAT BOTTOM, PER BOTTOM 12 INCH, 14 INCH AND 16 INCH
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 12" & 14")

11шт.

1

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

12шт.

2

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 12" & 14")

2шт.

2

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

3шт.

3

T19474

BOLT - plow, 3/8" x 1-5/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

2шт.

4

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

5

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

6

1453

ELBOW

WASHER - beam filler

1шт.

10

1865A

BRACKET - slat (Per btm. 12" & 14")

1шт.

11

P25

NUT - round brace

1шт.

12

WA7951S

BRACE - moldboard, 1-1/2" x 3/8" x 9-1/2" (Per btm. 12" & 14")

1шт.

13

W8304S

CLAMP - share

1шт.

T19474

BOLT - plow, 3/8" x 1-5/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

14

T61200

LANDSIDE - 4" x 1/2" x 14-1/2" (Per btm. 12" & 14")

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 12" & 14")

1шт.

Z1604

BOLT

- plow, 7/16" x 2" P#3 w/rep. hd. & hex nut (Per btm. 12" & 14")

1шт.

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 12" & 14")

1шт.

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 12" & 14")

1шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x #10 ga. (Per btm. 12" & 14")

1шт.

15

W10552S

FROG

1шт.

11-840

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

- 1/2" x 2-1/2" carriage

1шт.

11-856

BOLT (MACHINE)

BOLT - 1/2" x 3-1/2" carriage

1шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga.) 1/2"

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

16

T60826

SLAT - no. 1

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

2шт.

17

T60937

LANDSIDE

- 4" x 1/2" x 15-7/8" (Per btm. 16")

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

1шт.

Z1604

BOLT

- plow, 7/16" x 2" P#3 w/rep. hd. & hex nut (Per btm. 16")

1шт.

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

1шт.

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

1шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x #10 ga. (Per btm. 16")

1шт.

18

W10555S

BRACE - moldboard, 1-1/2" x 3/8" x 8-3/4" (Per btm. 16")

1шт.

19

X463

SLAT - no. 2

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

2шт.
