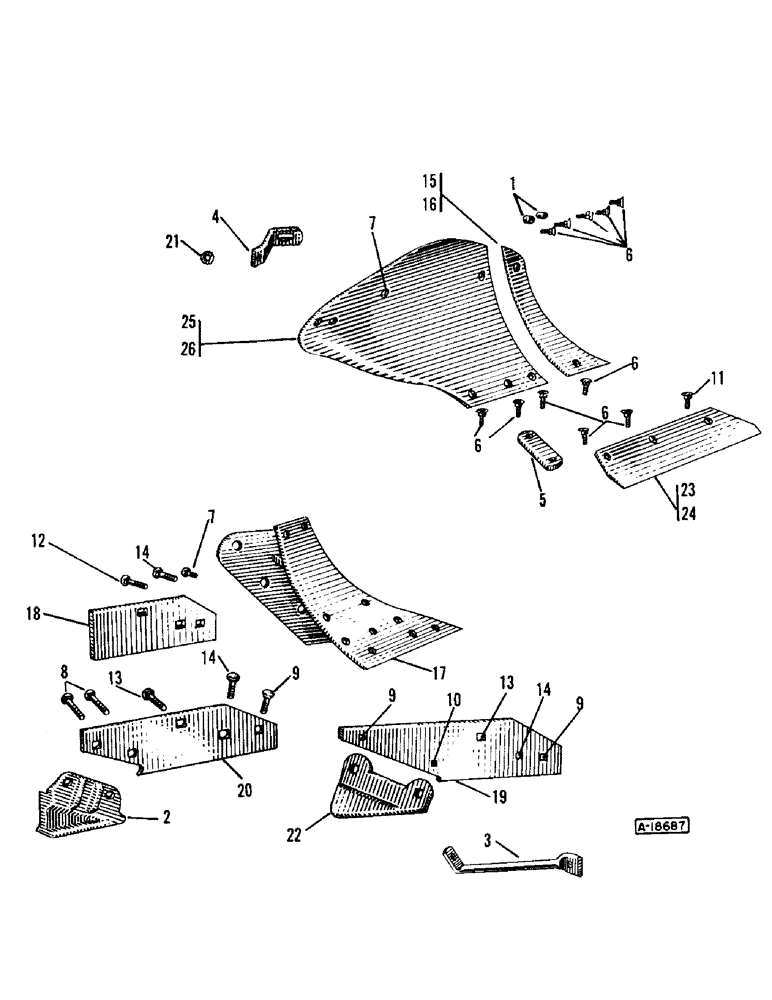

Запчасти Case IH CASE (086) - EXC 14 INCH AND 16 INCH EAGLE BOTTOM, PER BOTTOM 14 INCH AND 16 INCH

1

H1521S

BUSHING

SPACER - moldboard extension

2шт.

2

T1575

BLADE

HEEL CASTING - use w/T27012 landside

1шт.

3

T11757

BRACE - landside to moldboard (Rear bottom only)

1шт.

4

T18018

BRACE

- moldboard

1шт.

5

T19441

STRAP

- moldboard

1шт.

195-2032

WASHER - 1" x 7/16" x #16 ga.

1шт.

6

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

10шт.

7

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

2шт.

8

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

2шт.

9

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

10

T19475

BOLT

- plow, 3/8" x 2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

11

T27359

BOLT

- plow, 1/2" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

12

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

13

T19483

PLOW BOLT

BOLT - plow, 1/2" x 3" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

14

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

15

T60002

SHIN

PIECE - moldboard (Per btm. 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

2шт.

16

T60003

SHIN

PIECE - moldboard (Per btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

2шт.

17

T26961

FROG

1шт.

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2" x 2-1/4" N.C. hex

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

1шт.

92-8

LOCK WASHER,1/2"

1шт.

18

T60590

LANDSIDE

- 4" x 3/8" x 11"

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

19

T62013

LANDSIDE

- 4" x 1/2" x 20" rear bottom only w/heel WA887

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

2шт.

T19475

BOLT

- plow, 3/8" x 2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19483

PLOW BOLT

BOLT - plow, 1/2" x 3" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x #10 ga. (On T19484)

1шт.
