(088) - EXC 14 INCH AND 16 INCH EAGLE BOTTOM, PER BOTTOM

Запчасти Case IH CASE (088) - EXC 14 INCH AND 16 INCH EAGLE BOTTOM, PER BOTTOM

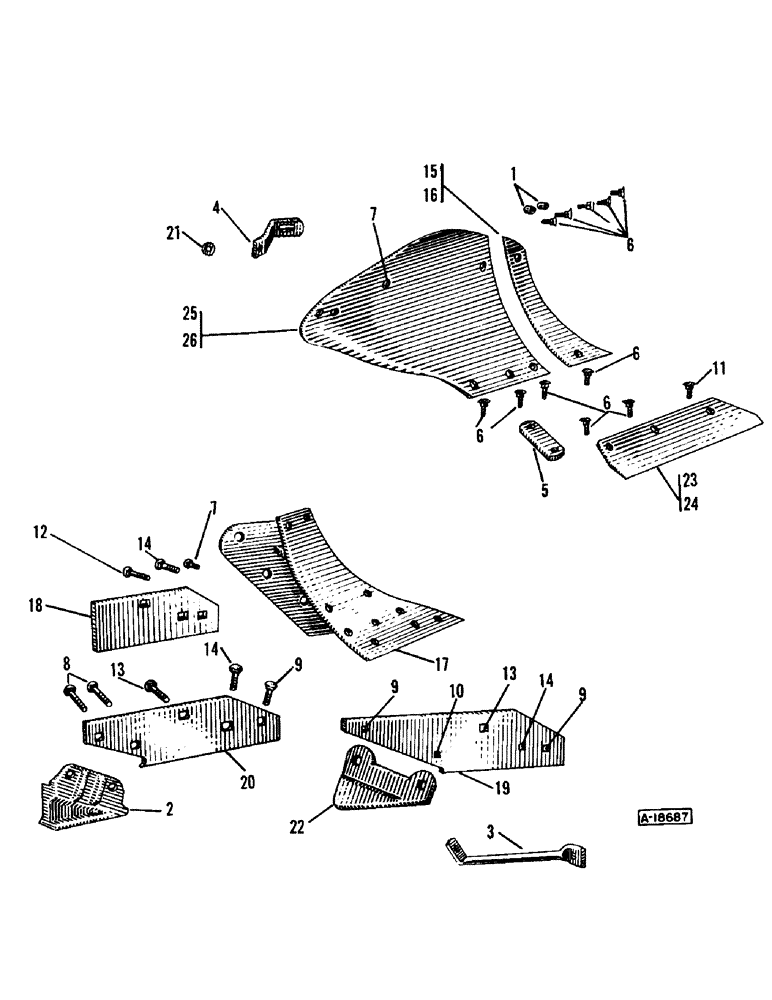

Схема запчастей Case IH CASE - (088) - EXC 14 INCH AND 16 INCH EAGLE BOTTOM, PER BOTTOM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

20

T62015

LANDSIDE

- 4" x 1/2" x 14" w/T1575 heel cstg.

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

2шт.

T19483

PLOW BOLT

BOLT - plow, 1/2" x 3" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

195-2030

WASHER,13/32" x 7/8" x .065"

- 7/8" x 13/32" x #16 ga. (On T19472)

2шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga.) (On T19483) 1/2"

1шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" #10 ga. (On T19484)

1шт.

21

W10579S

WASHER - serrated

1шт.

22

WA887

HEEL

PLATE - rear bottom only

1шт.

23

E14A

SHARE - 14" curved steel with bolts (Per btm. 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

2шт.

T62143

BOLT

- plow, 1/2" x 1-1/8" P#3 SAE gr. 5 w/N.C. hex jam nut (Per btm. 14")

1шт.

23

EE14A

SHARE

- 14" curved steel, less bolts (Per btm. 14")

1шт.

23

EE14KA

SHARE

- 14" curved steel, clipped, less bolts (Per btm. 14")

1шт.

23

EE14AH

SHARE

- 14" curved steel, hard faced, less bolts (Per btm. 14")

1шт.

23

EE14FM

SHARE

- 14" curved steel, forged tip, less bolts (Per btm. 14")

1шт.

23

E14FM

SHARE

- 14" curved steel, forged tip, w/bolts (Per btm. 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

1шт.

T62144

BOLT (SPREADER)

BOLT - plow, 1/2" x 1-1/4" P#3 SAE gr. 5 w/N.C. hex jam nut (Per btm. 14")

1шт.

24

E16A

SHARE

- 16" curved steel with bolts (Per btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE gr. 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

2шт.

T62143

BOLT

- plow, 1/2" x 1-1/8" P#3 SAE gr. 5 w/N.C. hex jam nut (Per btm. 16")

1шт.

24

EE16A

SHARE

- 16" curved steel, less bolts (Per btm. 16")

1шт.

24

EE16AH

SHARE

- 16" curved steel, hard faced, less bolts (Per btm. 16")

1шт.

24

E16FM

SHARE

- 16" curved steel, forged tip, w/bolts (Hardware same as ref. no. 23, E14FM share) (Per btm. 16")

1шт.

24

EE16FM

SHARE

- 16" curved steel, forged tip, less bolts (Per btm. 16")

1шт.

25

T60000

MOLDBOARD

- "EXC" 14 (Per btm. 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

4шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

1шт.

26

T60001

MOLDBOARD

- "EXC 16" (Per btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

4шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

1шт.
