(104) - EXD 14 INCH LEFT HAND AND EXD 16 INCH LEFT HAND EAGLE BOTTOM, PER BOTTOM 14 INCH AND 16 INCH, CONTD

Запчасти Case IH CASE (104) - EXD 14 INCH LEFT HAND AND EXD 16 INCH LEFT HAND EAGLE BOTTOM, PER BOTTOM 14 INCH AND 16 INCH, CONTD

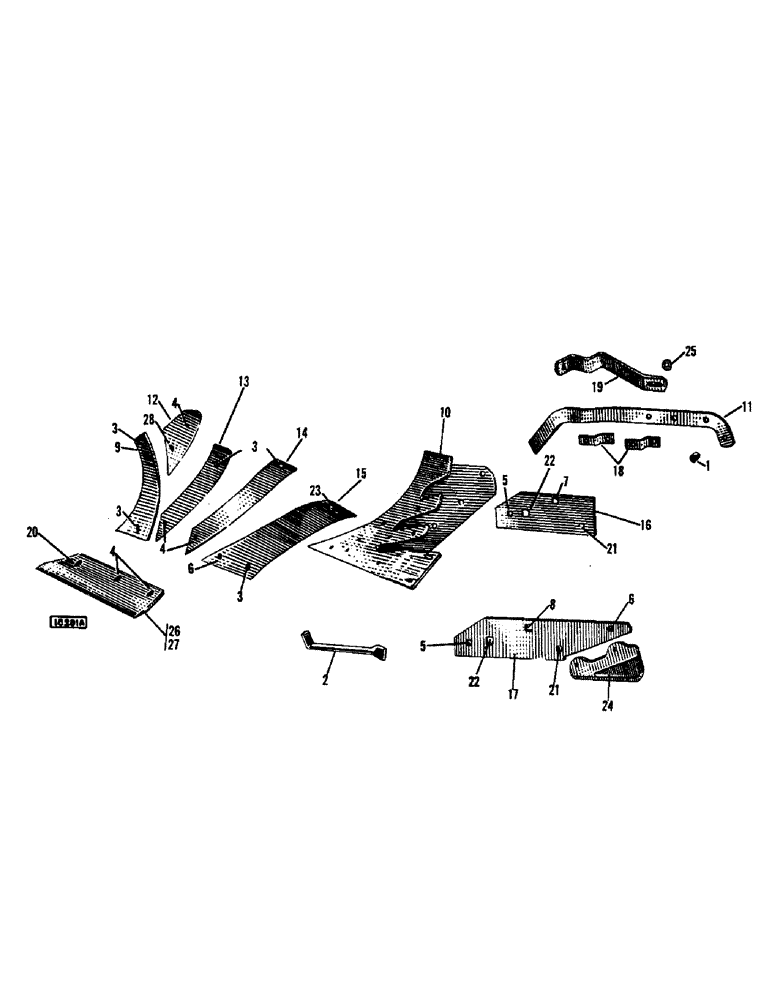

Схема запчастей Case IH CASE - (104) - EXD 14 INCH LEFT HAND AND EXD 16 INCH LEFT HAND EAGLE BOTTOM, PER BOTTOM 14 INCH AND 16 INCH, CONTD
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

17

T62014

LANDSIDE

- 4" x 1/2" x 20" rear bottom only

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 grade 5 SAE w/rep. hd. & N.C. hex nut

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 grade 5 SAE w/rep. hd. & N.C. hex nut

1шт.

T27360

BOLT

- plow, 3/8" x 1-3/4" P#3 grade 5 SAE w/rep. hd. & N.C. hex nut

1шт.

T19483

PLOW BOLT

BOLT - plow, 1/2" x 3" P#3 grade 5 SAE w/rep. hd. & N.C. hex nut

1шт.

T27361

BOLT

- plow, 5/8" x 2-1/2" P#3 grade 5 SAE w/rep. hd. & N.C. hex nut

1шт.

18

T27032

CLIP - slat and reinforcement

2шт.

19

T27049

BRACE - moldboard

1шт.

20

T27359

BOLT

- plow, 1/2" x 1-1/8" P#3 grade 5 SAE w/rep. hd. & N.C. hex nut

1шт.

21

T27360

BOLT

- plow, 3/8" x 1-3/4" P#3 grade 5 SAE w/rep. hd. & N.C. hex nut

1шт.

22

T27361

BOLT

- plow, 5/8" x 2-1/2" P#3 grade 5 SAE w/rep. hd. & N.C. hex nut

1шт.

23

T27363

BOLT

- plow, 3/8" x 2-3/4" P#3 grade 5 SAE w/rep. hd. & N.C. hex nut

1шт.

24

W1711

HEEL

PLATE - long landside

1шт.

25

W10579S

WASHER - serrated

1шт.

26

E14AL

SHARE - 14" curved steel with bolts (Per btm. 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 grade 5 SAE w/rep. hd. & N.C. hex nut (Per btm. 14")

2шт.

T62143

BOLT

- plow, 1/2" x 1-1/8" P#3 grade 5 SAE w/N.C. hex jam nut (Per btm. 14")

1шт.

26

EE14AL

SHARE

- 14" curved steel, less bolts (Per btm. 14")

1шт.

26

EE14AHL

SHARE - 14" curved steel, hard faced, less bolts (Per btm. 14")

1шт.

27

E16AL

SHARE

- 16" curved steel with bolts (Per btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 grade 5 SAE w/rep. hd. N.C. hex nut (Per btm. 16")

2шт.

T62143

BOLT

- plow, 1/2" x 1-1/8" P#3 grade 5 SAE w/N.C. hex jam nut (Per btm. 16")

1шт.

27

EE16AL

SHARE

- 16" curved steel, less bolts (Per btm. 16")

1шт.

27

EE16AHL

SHARE - 16" curved steel, hard faced, less bolts (Per btm. 16")

1шт.

28

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P#3 grade 5 SAE w/rep. hd. & N.C. hex nut

1шт.
