(108) - EXB 14 INCH AND 16 INCH EAGLE BOTTOM, PER BOTTOM 14 INCH AND 16 INCH

Запчасти Case IH CASE (108) - EXB 14 INCH AND 16 INCH EAGLE BOTTOM, PER BOTTOM 14 INCH AND 16 INCH

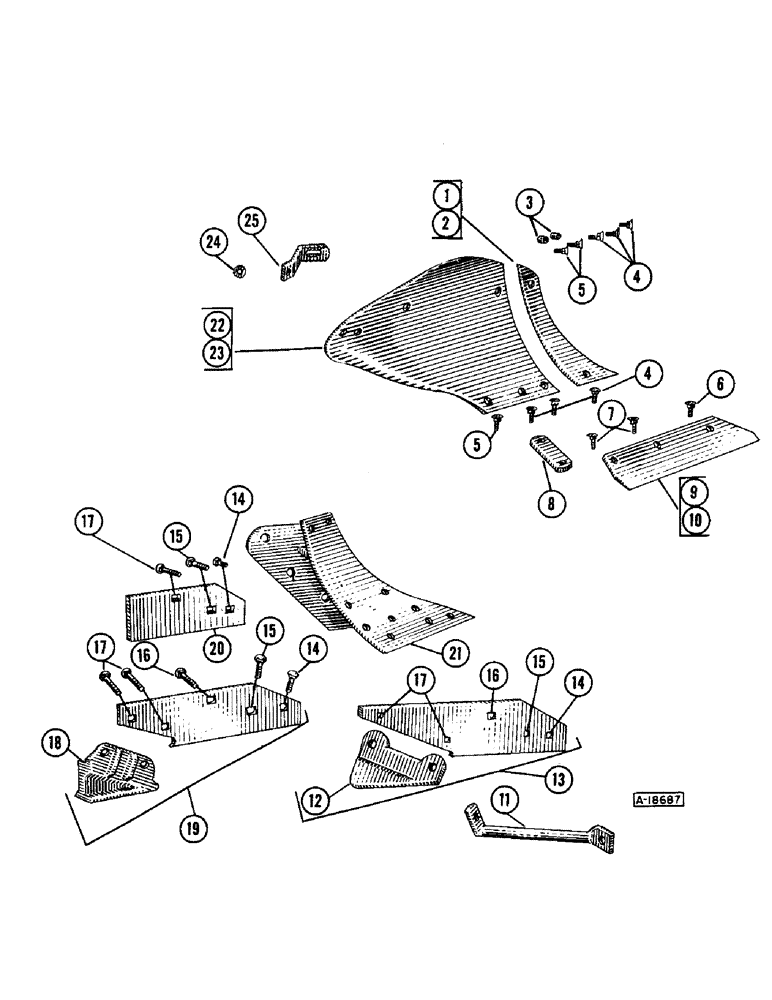

Схема запчастей Case IH CASE - (108) - EXB 14 INCH AND 16 INCH EAGLE BOTTOM, PER BOTTOM 14 INCH AND 16 INCH
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

T60002

SHIN

PIECE - moldboard (Per btm. 14")

1шт.

T16469

BOLT - plow, 3/8" x 1-1/8" P#3 grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

2шт.

2

T60003

SHIN

PIECE - moldboard (Per btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 grade 5 SAE w/rep. hd. & N.C. hex nut (Per btm. 16")

2шт.

3

H1521S

BUSHING

SPACER - moldboard extension

2шт.

4

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

5

T19468

BOLT - plow, 3/8" x 1" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

6

T62144

BOLT (SPREADER)

BOLT - plow, 1/2" x 1-1/4" P#3 grade 5 and N.C. hex jam nut

1шт.

7

T62142

BOLT

- plow, 3/8" x 1-1/8" P#3 grade 5 SAE and N.C. hex jam nut

1шт.

8

T19441

STRAP

- moldboard

1шт.

195-2032

WASHER - 1" x 7/16" x #16 ga.

1шт.

9

E14FM

SHARE

- 14" curved steel, forged tip, w/bolts (Per btm. 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 grade 5 SAE w/rep. hd. & N.C. hex nut (Per btm. 14")

3шт.

T62144

BOLT (SPREADER)

BOLT - plow, 1/2" x 1-1/4" P#3 grade 5 SAE w/N.C. hex jam nut (Per btm. 14")

1шт.

9

EE14KFM

X

SHARE - 14" curved steel, forged tip (Clipped) less bolts (Per btm. 14")

1шт.

9

EE14FM

SHARE

- 14" curved steel, forged tip, less bolts (Per btm. 14")

1шт.

10

E16FM

SHARE

- 16" curved steel, forged tip, w/bolts (Per btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 grade 5 SAE w/rep. hd. & N.C. hex nut (Per btm. 16")

3шт.

T62144

BOLT (SPREADER)

BOLT - plow, 1/2" x 1-1/4" P#3 grade 5 SAE w/N.C. hex jam nut (Per btm. 16")

1шт.

10

EE16FM

SHARE

- 16" curved steel, forged tip, less bolts (Per btm. 16")

1шт.

11

T11757

BRACE - landside to moldboard (Rear btm. only)

1шт.

12

WA887

HEEL

PLATE - rear bottom only

1шт.

13

T62013

LANDSIDE

- 4" x 1/2" x 20" w/heel WA887, rear bottom only

1шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x #10 ga.

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P#3 grade 5 w/rep. hd. & N.C. hex nut

2шт.

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

14

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

15

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

16

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

17

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

18

T1575

BLADE

HEEL CASTING

1шт.
