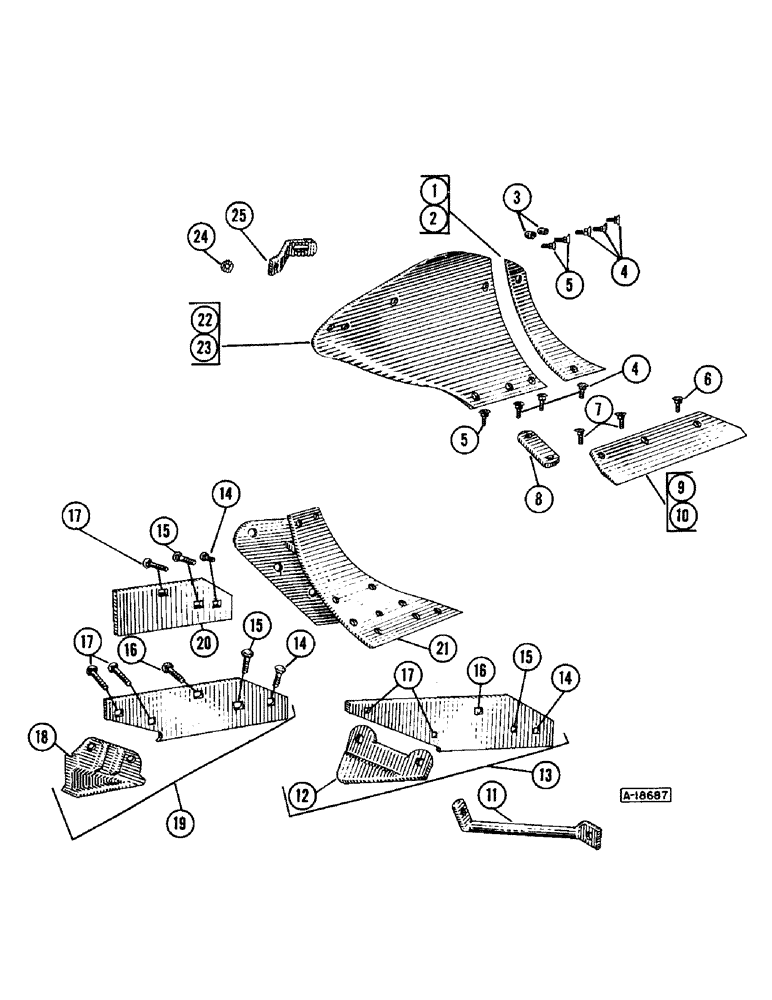

Запчасти Case IH CASE (110) - EXB 14 INCH AND 16 INCH EAGLE BOTTOM, PER BOTTOM 14 INCH AND 16 INCH, CONTINUED

19

T60283

LANDSIDE

- 4" x 1/2" x 14" w/T1575

1шт.

195-2030

WASHER,13/32" x 7/8" x .065"

- 7/8" x 13/32" x #16 ga.

2шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga.) 1/2"

1шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x #10 ga.

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P#3 grade 5 w/rep. hd. & N.C. hex nut

2шт.

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

20

T26991

LANDSIDE

- 4" x 3/8" x 11"

1шт.

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

21

T26961

FROG

1шт.

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2" x 2-1/4" N.C. hex

1шт.

92-8

LOCK WASHER,1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

1шт.

22

T60000

MOLDBOARD

(Per btm. 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

4шт.

T19468

BOLT - plow, 3/8" x 1" P#3 grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

3шт.

23

T60001

MOLDBOARD

(Per btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

4шт.

T19468

BOLT - plow, 3/8" x 1" P#3 grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

3шт.

24

W10579S

WASHER - serrated

1шт.

25

T18018

BRACE

- moldboard

1шт.
